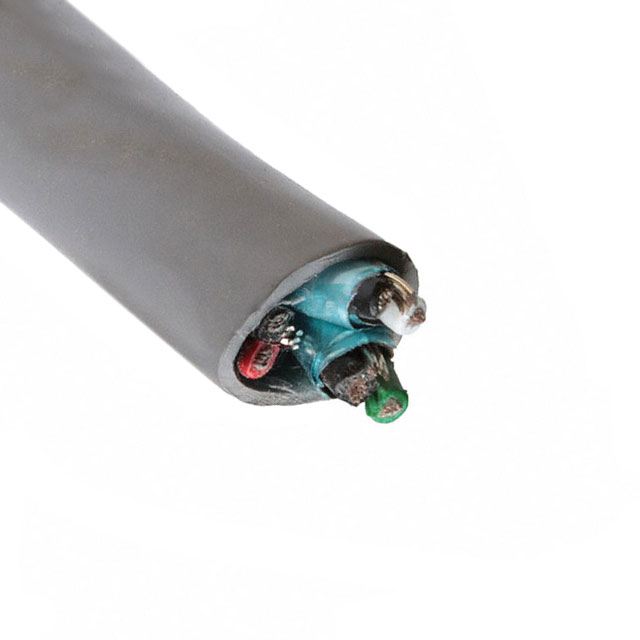

M13173 SL002

Active

ALPHA WIRE

MULTI-PAIR 6COND 18AWG SLATE

Search across all available documentation for this part.

Active

ALPHA WIRE

MULTI-PAIR 6COND 18AWG SLATE

Technical Specifications

Parameters and characteristics for this part

Specification	M13173 SL002

Cable Type	Multi-Pair
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	0.38 in
Jacket (Insulation) Diameter [diameter]	9.65 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Slate
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	6
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2919
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Voltage	300 V
Wire Gauge	18 AWG

Part	Conductor Material	Operating Temperature [Min]	Operating Temperature [Max]	Jacket Color	Voltage	Shield Material	Shield Coverage	Cable Type	Shield Type	Conductor Insulation	Ratings	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Length [x]	Length [x]	Number of Conductors	Length	Length
ALPHA WIRE M13173 SL005	Copper Tinned	-20 C	80 C	Slate	300 V	Aluminum	100 %	Multi-Pair	Foil	Polyethylene (PE)	UL Style 2919	0.38 in	9.65 mm	18 AWG	16	30 AWG	Poly-Vinyl Chloride (PVC)	30.5 m	100 ft	6
ALPHA WIRE M13173 SL001	Copper Tinned	-20 C	80 C	Slate	300 V	Aluminum	100 %	Multi-Pair	Foil	Polyethylene (PE)	UL Style 2919	0.38 in	9.65 mm	18 AWG	16	30 AWG	Poly-Vinyl Chloride (PVC)			6	1000 ft	304.8 m
ALPHA WIRE M13173 SL002	Copper Tinned	-20 C	80 C	Slate	300 V	Aluminum	100 %	Multi-Pair	Foil	Polyethylene (PE)	UL Style 2919	0.38 in	9.65 mm	18 AWG	16	30 AWG	Poly-Vinyl Chloride (PVC)	152.4 m	500 '	6

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 778.23

General part information

6 (3 Pair Twisted) Conductor Multi-Pair Cable Slate 18 AWG Foil 500.0' (152.4m)
