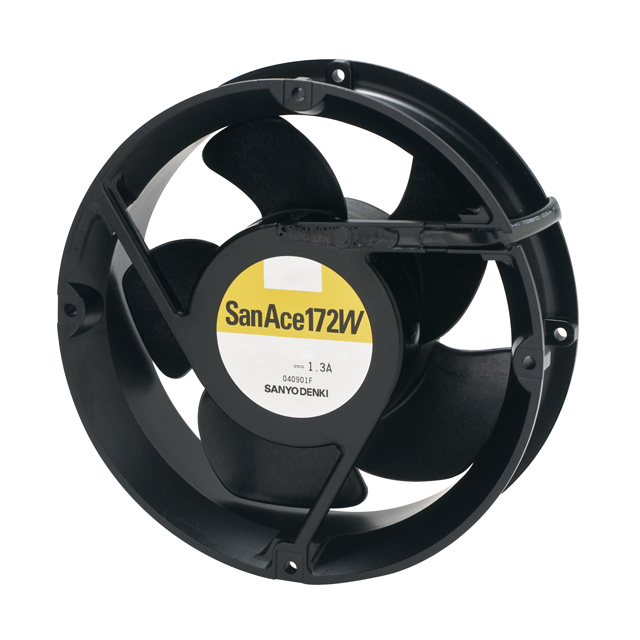

9WE1724K501
ActiveSanyo Denki America Inc.
FAN AXIAL 172X51MM 24VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
9WE1724K501
ActiveSanyo Denki America Inc.
FAN AXIAL 172X51MM 24VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 9WE1724K501 |
|---|---|
| Air Flow | 300.1 CFM |
| Air Flow | 8.4 mł/min |
| Approval Agency | CSA, TUV, UL |
| Bearing Type | Ball |
| Current Rating (Amps) | 1.3 A |
| Fan Type | Tubeaxial |
| Features | Speed Sensor (Tach) |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Lifetime @ Temp. | 40000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Aluminum |
| Noise | 55 dB |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 °C |
| Operating Temperature [Min] | -20 C |
| Power (Watts) | 31.2 W |
| RPM | 4100 RPM |
| Size / Dimension | Round |
| Size / Dimension [diameter] | 172 mm |
| Static Pressure | 241.6 Pa |
| Static Pressure | 0.97 in H2O |
| Termination | 3 Wire Leads |
| Voltage - Rated | 24 VDC |
| Weight | 900 g |
| Weight | 1.9 lbs |
| Width [y] | 51 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 144.97 | |
| 16 | $ 130.29 | |||
| 32 | $ 128.46 | |||
| 56 | $ 120.20 | |||
Description
General part information
9WE1724 Series
Fan Tubeaxial 24VDC Round - 172mm Dia Ball 300.1 CFM (8.40mł/min) 3 Wire Leads
