15-006243
ActiveAmphenol CONEC

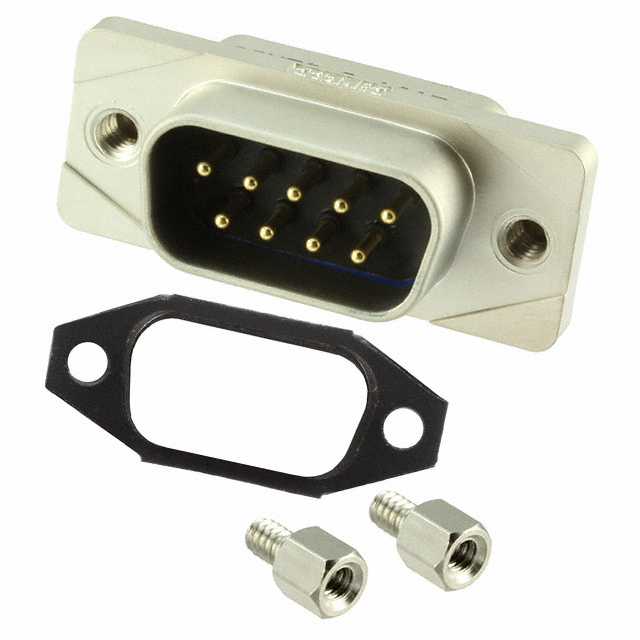

CONN D-SUB PLUG 9POS PNL MNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
15-006243
ActiveAmphenol CONEC
CONN D-SUB PLUG 9POS PNL MNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 15-006243 |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 7.5 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Gasket |
| Flange Feature | Mating Side, Female Screwlock (4-40), Cable Side (4-40) |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Shell Material, Finish | Nickel Plated, Zinc Die Cast |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Voltage Rating | 125 VDC |
| Wire Gauge | 20 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 33.41 | |
| 10 | $ 25.80 | |||
| 25 | $ 23.38 | |||
| 50 | $ 21.75 | |||
| 100 | $ 20.27 | |||
| 250 | $ 18.53 | |||
| 500 | $ 17.36 | |||
Description
General part information
15-0062 Series
9 Position D-Sub Plug, Male Pins Connector
