HA222H6Q34V16F300
ActiveNicomatic

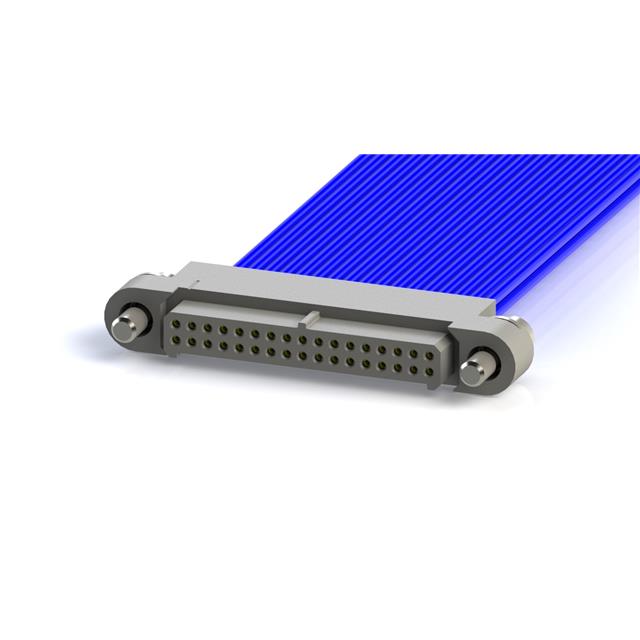

FEM WIRED 34POS 300MM AWG26 BLUE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HA222H6Q34V16F300
ActiveNicomatic
FEM WIRED 34POS 300MM AWG26 BLUE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HA222H6Q34V16F300 |
|---|---|
| Cable Termination | Crimp |
| Color | Blue, Individual |
| Connector Type | Socket to Cable |
| Contact Finish | Gold |
| Contact Finish Thickness | 5.9 µin |
| Contact Finish Thickness | 0.15 µm |
| Features | Screw Lock |
| Length [x] | 0.984 ' |
| Length [x] | 11.81 " |
| Length [x] | 300 mm |
| Number of Positions | 34 |
| Number of Rows | 2 |
| Pitch - Connector | 0.039 " |
| Pitch - Connector | 1 mm |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 109.93 | |
| 25 | $ 102.57 | |||
| 100 | $ 96.38 | |||
| 500 | $ 90.50 | |||
Description
General part information
HA222H6Q34 Series
34 Position Cable Assembly Rectangular Socket to Cable 0.984' (300.00mm, 11.81")
