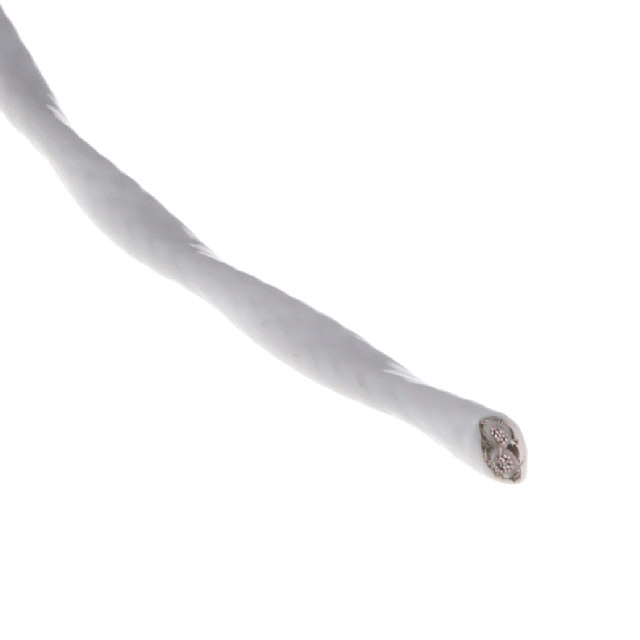

275002002 NA199

Active

ALPHA WIRE

AE HIGH/LOW TEMPERATURE /BULK FT /FT

Search across all available documentation for this part.

Active

ALPHA WIRE

AE HIGH/LOW TEMPERATURE /BULK FT /FT

Technical Specifications

Parameters and characteristics for this part

Specification	275002002 NA199

Cable Type	Multi-Conductor
Conductor Insulation	Ethylene Tetrafluoroethylene (ETFE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	32 AWG
Jacket (Insulation) Material	Ethylene Tetrafluoroethylene (ETFE)
Jacket (Insulation) Thickness	0.0098 in
Jacket (Insulation) Thickness	0.25 mm
Jacket Color	Natural
Length	914.4 m
Length	3000 ft
Number of Conductors	2
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Shield Coverage	85 %
Shield Material	Copper, Tinned
Shield Type	Braid
Voltage	600 V
Wire Gauge	20 AWG

Part	Conductor Material	Length	Length	Conductor Insulation	Shield Type	Voltage	Cable Type	Operating Temperature [Min]	Operating Temperature [Max]	Shield Material	Number of Conductors	Shield Coverage	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Wire Gauge	Jacket Color
ALPHA WIRE 275002002 NA199	Copper Tinned	914.4 m	3000 ft	Ethylene Tetrafluoroethylene (ETFE)	Braid	600 V	Multi-Conductor	-55 °C	150 °C	Copper Tinned	2	85 %	19	32 AWG	0.0098 in	0.25 mm	Ethylene Tetrafluoroethylene (ETFE)	20 AWG	Natural

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Conductor Multi-Conductor Cable Natural 20 AWG Braid 3000' (914.4m)
