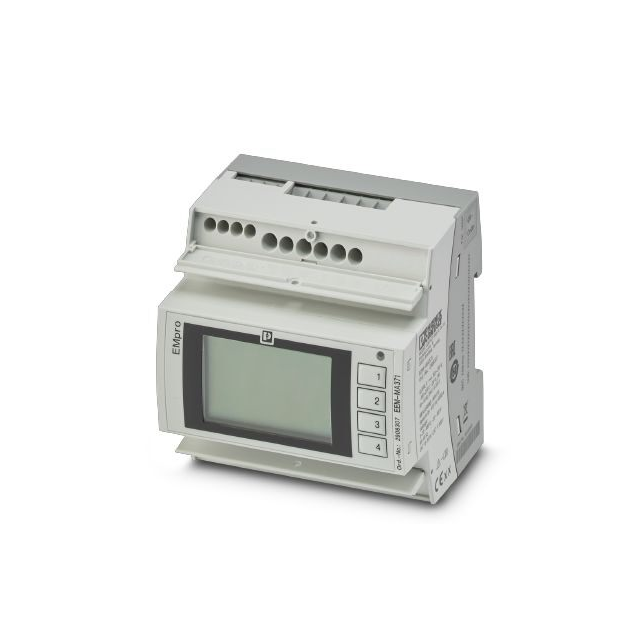

2908307

Active

Phoenix Contact

DIN-MOUNT ENERGY METER WITH DISP

Search across all available documentation for this part.

Active

Phoenix Contact

DIN-MOUNT ENERGY METER WITH DISP

Technical Specifications

Parameters and characteristics for this part

Specification	2908307

Display Type	LCD - Black Characters, Backlight
Measuring Range [Max]	690 VAC, 5 A
Measuring Range [Min]	0 A, 35 VAC
Measuring Type	Current (3-Phase), Wattage, Voltage
Mounting Type	DIN Rail
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Termination Style	Screw Terminal
Type	Energy Monitor
Voltage - Supply [Max]	250 V, 230 VAC
Voltage - Supply [Min]	100 VAC, 150 VDC

Part	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Type	Termination Style	Voltage - Supply [Max]	Voltage - Supply [Min]	Measuring Type	Measuring Range [Min]	Measuring Range [Max]	Mounting Type	Display Type	Ingress Protection
Phoenix Contact 2908308	55 °C	-10 °C	Energy Monitor	Screw Terminal	230 VAC 250 V	100 VAC 150 VDC	Current (3-Phase) Voltage Wattage	0 A 35 VAC	5 A 690 VAC	DIN Rail
Phoenix Contact 2908307	55 °C	-10 °C	Energy Monitor	Screw Terminal	230 VAC 250 V	100 VAC 150 VDC	Current (3-Phase) Voltage Wattage	0 A 35 VAC	5 A 690 VAC	DIN Rail	LCD - Black Characters Backlight
Phoenix Contact 2908302	55 °C	-10 °C	Energy Monitor	Screw Terminal	250 V 400 VAC	100 VAC 150 VDC	Current (3-Phase) Voltage Wattage	0 A 35 VAC	5 A 690 VAC		LCD - Black Characters Backlight	IP54 - Dust Protected Water Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Energy Monitor LCD - Black Characters, Backlight Display DIN Rail
