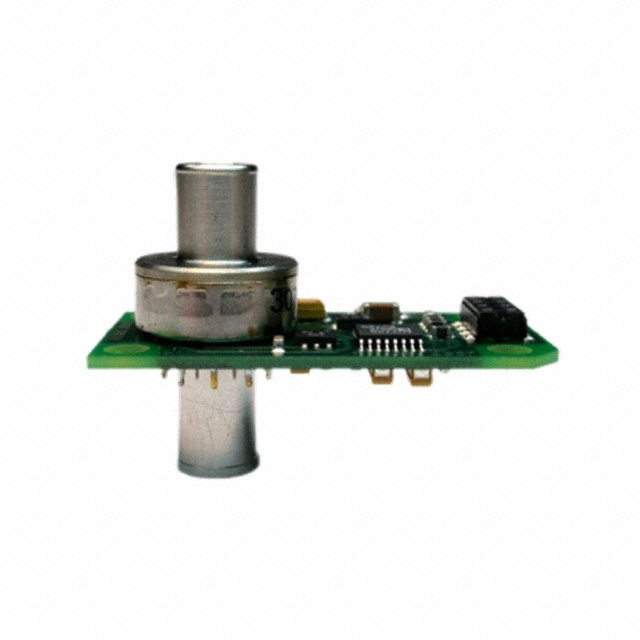

IPT0002D33R
ActiveHONEYWELL / SENSOTEC
SENSOR 2PSID 0.26" 24BIT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IPT0002D33R
ActiveHONEYWELL / SENSOTEC
SENSOR 2PSID 0.26" 24BIT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IPT0002D33R |
|---|---|
| Accuracy | 0.1 % |
| Applications | Board Mount |
| Features | Temperature Compensated |
| Maximum Pressure [Max] | 6 PSI |
| Maximum Pressure [Max] | 41.37 kPa |
| Operating Pressure [x] | 13.79 kPa |
| Operating Pressure [x] | 2 PSI |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | 24 b |
| Output Type | SPI |
| Package / Case | Module |
| Port Size | Tube, Male |
| Port Size | 6.71 mm |
| Port Size | 0.26 in |
| Port Style | Barbless |
| Pressure Type | Differential |
| Termination Style | Connector |
| Voltage - Supply [Max] | 12 V |
| Voltage - Supply [Min] | 4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
IPT0002 Series
Pressure Sensor 2PSI (13.79kPa) Differential Male - 0.26" (6.71mm) Tube 24 b Module
