5500.2113

Active

SCHURTER Inc.

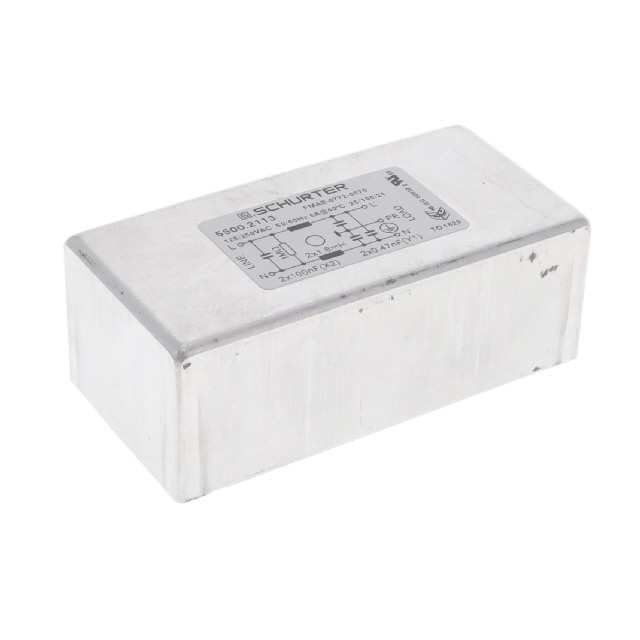

POWER LINE FILTERS FMAB-72 FILTER 1PH 1ST 6A 250VAC M80

Search across all available documentation for this part.

Active

SCHURTER Inc.

POWER LINE FILTERS FMAB-72 FILTER 1PH 1ST 6A 250VAC M80

Technical Specifications

Parameters and characteristics for this part

Specification	5500.2113

Applications	General Purpose
Approval Agency	cURus, VDE, ENEC
Configuration	Single Stage
Current	6 A
Filter Type	Single Phase
Frequency - Operating [Max]	60 Hz
Frequency - Operating [Min]	50 Hz
Mounting Type	Through Hole
Operating Temperature [custom]	100 °C, -25 °C
Termination Style	PC Pins
Voltage - Rated AC	125 V, 250 V

Power Line Filters 5500 MAIN FILTER 4A

Part	Current	Filter Type	Applications	Frequency - Operating [Max]	Frequency - Operating [Min]	Approval Agency	Termination Style	Voltage - Rated AC	Configuration	Operating Temperature [custom]	Mounting Type
SCHURTER Inc. 5500.2113	6 A	Single Phase	General Purpose	60 Hz	50 Hz	cURus ENEC VDE	PC Pins	125 V 250 V	Single Stage	-25 °C 100 °C	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Line Filters 5500 MAIN FILTER 4A
