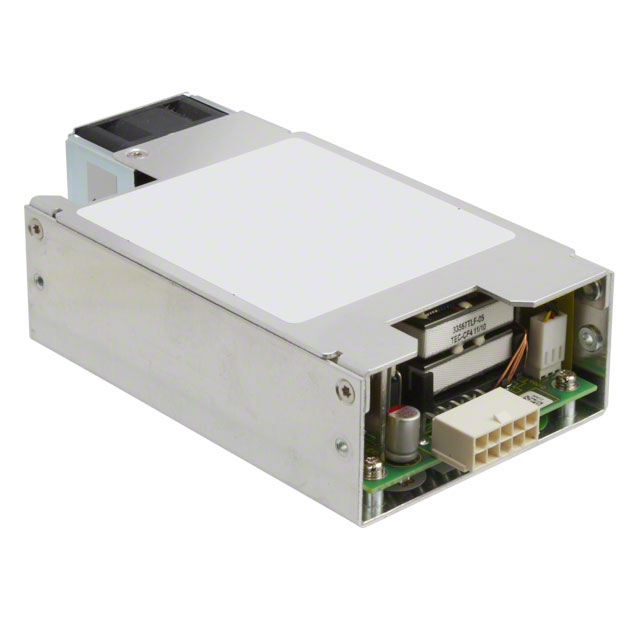

U2Y005K
ActiveTDK-LAMBDA
AC/DC OPEN FRAME POWER SUPPLY (PSU), ACTIVE PFC, 1 OUTPUT, FIXED, 24 V
Deep-Dive with AI
Search across all available documentation for this part.
U2Y005K
ActiveTDK-LAMBDA
AC/DC OPEN FRAME POWER SUPPLY (PSU), ACTIVE PFC, 1 OUTPUT, FIXED, 24 V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | U2Y005K |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output 1 | 12.5 A |
| Efficiency | 90 % |
| Features | PFC, Universal Input |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 300 W |
| Size / Dimension [x] | 127 mm |
| Size / Dimension [y] | 76.2 mm, 3 " |
| Size / Dimension [z] | 1.34 in, 34 mm |
| Type | Open Frame |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Isolation | 4.3 kV |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
U2Y005 Series
Open Frame AC DC Converters 1 Output 24V 90 ~ 264 VAC Input
