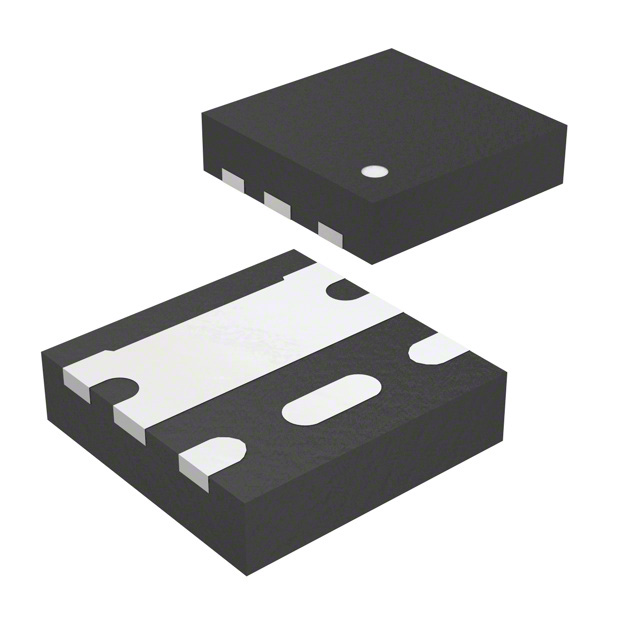

AON1620

Obsolete

Alpha & Omega Semiconductor Inc.

MOSFET N-CH 12V 4A 6DFN

Search across all available documentation for this part.

Obsolete

Alpha & Omega Semiconductor Inc.

MOSFET N-CH 12V 4A 6DFN

Technical Specifications

Parameters and characteristics for this part

Specification	AON1620

Current - Continuous Drain (Id) @ 25°C	4 A
Drain to Source Voltage (Vdss)	12 V
Drive Voltage (Max Rds On, Min Rds On)	4.5 V, 1.5 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs [Max]	12 nC
Input Capacitance (Ciss) (Max) @ Vds [Max]	770 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	6-PowerUFDFN
Power Dissipation (Max)	1.8 W
Rds On (Max) @ Id, Vgs	22 mOhm
Supplier Device Package	6-DFN (1.6x1.6)
Technology	MOSFET (Metal Oxide)
Vgs (Max)	8 V
Vgs(th) (Max) @ Id	1 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Current - Continuous Drain (Id) @ 25°C	Drive Voltage (Max Rds On, Min Rds On)	Mounting Type	Supplier Device Package	Technology	Input Capacitance (Ciss) (Max) @ Vds	Vgs(th) (Max) @ Id	Vgs (Max)	Power Dissipation (Max)	FET Type	Drain to Source Voltage (Vdss)	Gate Charge (Qg) (Max) @ Vgs [Max]	Rds On (Max) @ Id, Vgs [Max]	Package / Case	Rds On (Max) @ Id, Vgs	Input Capacitance (Ciss) (Max) @ Vds [Max]
Alpha & Omega Semiconductor Inc. AON1610	-55 °C	150 °C	4 A	1.5 V 4.5 V	Surface Mount	6-DFN (1.6x1.6)	MOSFET (Metal Oxide)	748 pF	1.1 V	8 V	1.8 W	N-Channel	20 V	14 nC	29 mOhm	6-PowerUFDFN
Alpha & Omega Semiconductor Inc. AON1620	-55 °C	150 °C	4 A	1.5 V 4.5 V	Surface Mount	6-DFN (1.6x1.6)	MOSFET (Metal Oxide)		1 V	8 V	1.8 W	N-Channel	12 V	12 nC		6-PowerUFDFN	22 mOhm	770 pF
