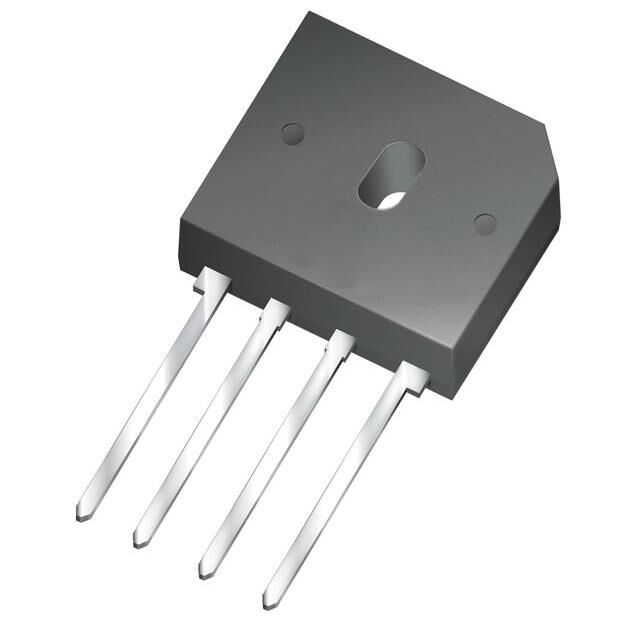

GBU405H

Active

Taiwan Semiconductor Corporation

BRIDGE RECT 1PHASE 600V 4A GBU

Search across all available documentation for this part.

Active

Taiwan Semiconductor Corporation

BRIDGE RECT 1PHASE 600V 4A GBU

Technical Specifications

Parameters and characteristics for this part

Specification	GBU405H

Current - Average Rectified (Io)	4 A
Current - Reverse Leakage @ Vr	5 µA
Diode Type	Single Phase
Grade	Automotive
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	4-SIP, GBU
Qualification	AEC-Q101
Supplier Device Package	GBU
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.1 V
Voltage - Peak Reverse (Max) [Max]	600 V

Part	Diode Type	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Peak Reverse (Max) [Max]	Mounting Type	Supplier Device Package	Current - Reverse Leakage @ Vr	Technology	Package / Case	Grade	Qualification
Taiwan Semiconductor Corporation GBU405	Single Phase	4 A	1 V	-55 °C	150 °C	600 V	Through Hole	GBU	5 µA	Standard	4-SIP GBU
Taiwan Semiconductor Corporation GBU405H	Single Phase	4 A	1.1 V	-55 °C	150 °C	600 V	Through Hole	GBU	5 µA	Standard	4-SIP GBU	Automotive	AEC-Q101

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Single Phase Standard 600 V Through Hole GBU
