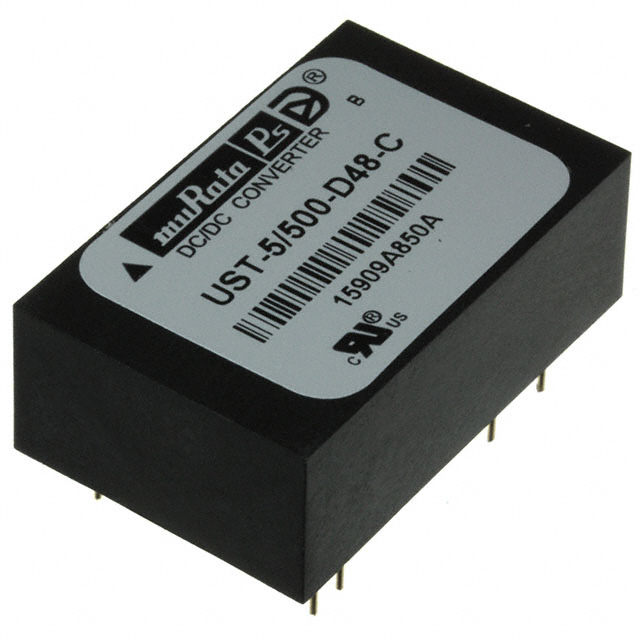

UST-5/500-D48-C

Obsolete

Murata Power Solutions Inc.

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, DIP, 4:1, 2.5 W, 1 OUTPUT, 5 V

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, DIP, 4:1, 2.5 W, 1 OUTPUT, 5 V

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Input (Max) [Max]	Type	Package / Case	Voltage - Output 1	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Current - Output (Max) [Max]	Power (Watts)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Voltage - Input (Min) [Min]	Efficiency	Voltage - Isolation
Murata Power Solutions Inc. UST-5/500-D12-C	18 V	Isolated Module	8-DIP Module	5 V	ITE (Commercial)	-40 °C	75 ░C	1	500 mA	3 W	0.8 in	1.25 "	0.45 "	11.4 mm	31.8 mm	20.3 mm	Through Hole	9 V	74 %	1000 V
Murata Power Solutions Inc. UST-5/500-D5-C	9 V	Isolated Module	8-DIP Module	5 V	ITE (Commercial)	-40 °C	75 ░C	1	500 mA	3 W	0.8 in	1.25 "	0.45 "	11.4 mm	31.8 mm	20.3 mm	Through Hole	4.5 V	74 %	1000 V
Murata Power Solutions Inc. UST-5/500-D48-C	72 V	Isolated Module	8-DIP Module	5 V	ITE (Commercial)	-40 °C	75 ░C	1	500 mA	3 W	0.8 in	1.25 "	0.45 "	11.4 mm	31.8 mm	20.3 mm	Through Hole	18 V	75 %	1000 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 40.41
Newark	Each	1	$ 44.48

General part information

Isolated Module DC DC Converter 1 Output 5V 500mA 18V - 72V Input
