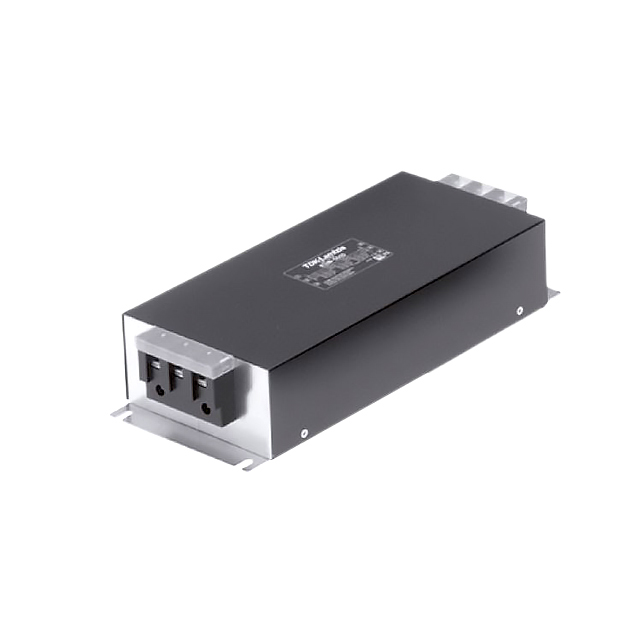

RTHN-5080

Active

TDK-LAMBDA

POWER LINE FILTER, GENERAL PURPOSE, 500 V, 80 A, THREE PHASE, 2 STAGE, CHASSIS MOUNT

Search across all available documentation for this part.

Active

TDK-LAMBDA

POWER LINE FILTER, GENERAL PURPOSE, 500 V, 80 A, THREE PHASE, 2 STAGE, CHASSIS MOUNT

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Filter Type	Voltage - Rated DC	Configuration	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Mounting Type	Approval Agency	Voltage - Rated AC	Current
TDK-LAMBDA RTHN-5100	Terminal Block	Three Phase (Delta)	500 V	Two Stage	-25 °C	85 °C	General Purpose	Chassis Mount	EN UL	500 V	100 A
TDK-LAMBDA RTHN-5030	Terminal Block	Three Phase (Delta)	500 V	Two Stage	-25 °C	85 °C	General Purpose	Chassis Mount	EN UL	500 V	30 A
TDK-LAMBDA RTHN-5250	Terminal Block	Three Phase (Delta)	500 V	Two Stage	-25 °C	85 °C	General Purpose	Chassis Mount	EN	500 V	250 A
TDK-LAMBDA RTHN-5060	Terminal Block	Three Phase (Delta)	500 V	Two Stage	-25 °C	85 °C	General Purpose	Chassis Mount	EN UL	500 V	60 A
TDK-LAMBDA RTHN-5020	Terminal Block	Three Phase (Delta)	500 V	Two Stage	-25 °C	85 °C	General Purpose	Chassis Mount	EN UL	500 V	20 A
TDK-LAMBDA RTHN-5010	Terminal Block	Three Phase (Delta)	500 V	Two Stage	-25 °C	85 °C	General Purpose	Chassis Mount	EN UL	500 V	10 A
TDK-LAMBDA RTHN-5080	Terminal Block	Three Phase (Delta)	500 V	Two Stage	-25 °C	85 °C	General Purpose	Chassis Mount	EN UL	500 V	80 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Three Phase (Delta) EMC/EMI Line Filter 80 A 500V 500V Two Stage Terminal Block
