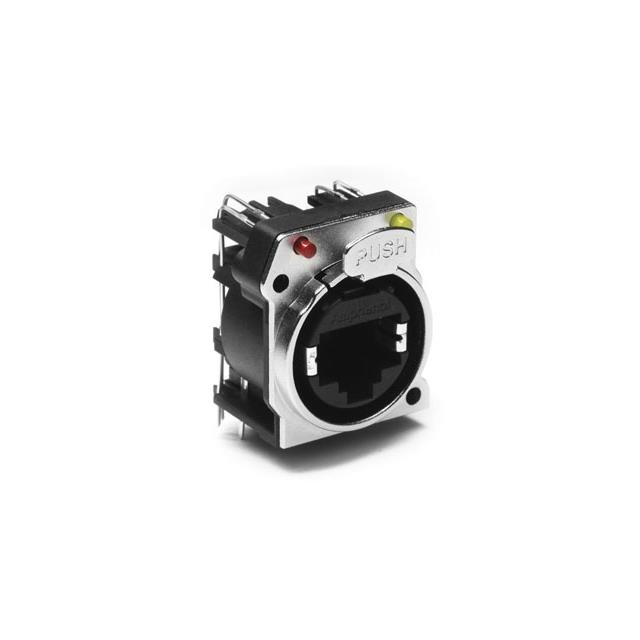

RJX8FB5HRRB

Active

AMPHENOL AUDIO

XLRNET B TYPE ETHERNET CHASSIS MOUNT, HORIZONTAL PCB, CAT5E, LED SEQUENCE RED/RED, BULK PACKAGING /BOX ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

AMPHENOL AUDIO

XLRNET B TYPE ETHERNET CHASSIS MOUNT, HORIZONTAL PCB, CAT5E, LED SEQUENCE RED/RED, BULK PACKAGING /BOX ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	RJX8FB5HRRB

Applications	10/100/1000 Base-T, AutoMDIX, Power over Ethernet+ (PoE+)
Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Phosphor Bronze
Height Above Board	28.5 mm
Height Above Board	1.122 in
Housing Material	Thermoplastic, Glass Filled
LED Color	Red - Red
Mounting Type	Through Hole, Panel Mount
Number of Ports	1
Number of Rows	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Orientation	90 °
Shield Material	Thermoplastic, Glass Filled
Shielding	Unshielded
Tab Direction	Down
Termination	Solder

Part	Number of Ports	Mounting Type	Orientation	LED Color	Contact Finish Thickness	Contact Finish Thickness	Termination	Height Above Board	Height Above Board	Shield Material	Contact Finish	Housing Material	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Applications	Number of Rows	Tab Direction	Connector Type
AMPHENOL AUDIO RJX8FB6HGRB	1	Panel Mount Through Hole	90 °	Green Red	50 µin	1.27 µm	Solder	28.5 mm	1.122 in	Thermoplastic Glass Filled	Gold	Thermoplastic Glass Filled	Unshielded	-40 °C	80 C	Phosphor Bronze	10G Base-T Power over Ethernet+ (PoE+)	1	Down	Jack
AMPHENOL AUDIO RJX8FD6HB	1	Panel Mount Flange Through Hole	90 °	Does Not Contain LED	50 µin	1.27 µm	Solder			Thermoplastic Glass Filled	Gold	Thermoplastic Glass Filled	Unshielded	-40 °C	80 C	Phosphor Bronze	10G Base-T Power over Ethernet+ (PoE+)	1	Down	Jack
AMPHENOL AUDIO RJX8FB5HRRB	1	Panel Mount Through Hole	90 °	Red - Red	50 µin	1.27 µm	Solder	28.5 mm	1.122 in	Thermoplastic Glass Filled	Gold	Thermoplastic Glass Filled	Unshielded	-40 °C	80 C	Phosphor Bronze	10/100/1000 Base-T AutoMDIX Power over Ethernet+ (PoE+)	1	Down	Jack
AMPHENOL AUDIO RJX8FB6HRGB	1	Panel Mount Through Hole	90 °	Green Red	50 µin	1.27 µm	Solder	28.5 mm	1.122 in	Thermoplastic Glass Filled	Gold	Thermoplastic Glass Filled	Unshielded	-40 °C	80 C	Phosphor Bronze	10G Base-T Power over Ethernet+ (PoE+)	1	Down	Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 8.90
Newark	Each	100	$ 10.70
		250	$ 9.77

General part information

1 Port Jack Panel Mount, Through Hole 10/100/1000 Base-T, AutoMDIX, Power over Ethernet+ (PoE+)
