RRTT1921BK1
ActiveHammond Manufacturing
RACK STEEL 12X20.4X24 BLK
Deep-Dive with AI
Search across all available documentation for this part.
RRTT1921BK1
ActiveHammond Manufacturing
RACK STEEL 12X20.4X24 BLK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RRTT1921BK1 |
|---|---|
| Color | Black |
| Dimensions - Overall [x] | 304.8 mm |
| Dimensions - Overall [x] | 12 in |
| Dimensions - Overall [y] | 20.375 " |
| Dimensions - Overall [y] | 517.53 mm |
| Dimensions - Overall [z] | 24 in |
| Dimensions - Overall [z] | 609.6 mm |
| Dimensions - Panel [x] | 2.075 in |
| Dimensions - Panel [x] | 52.71 mm |
| Dimensions - Panel [y] | 465.12 mm |
| Dimensions - Panel [y] | 18.312 in |
| Dimensions - Panel [z] | 533.4 mm |
| Dimensions - Panel [z] | 21 in |
| Door | Doorless |
| Material | Metal, Steel |
| Mounting Rails | One Pair |
| Number of Units | 12 U |
| Style | Single Frame, Open Rack |
| Type | Open Rack |
| Weight | 19 lbs |
| Weight | 8.6 kg |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 149.32 | |
| 5 | $ 146.65 | |||
| 10 | $ 143.99 | |||
| 25 | $ 141.85 | |||
| 50 | $ 138.65 | |||
Description
General part information
RRTT1921 Series

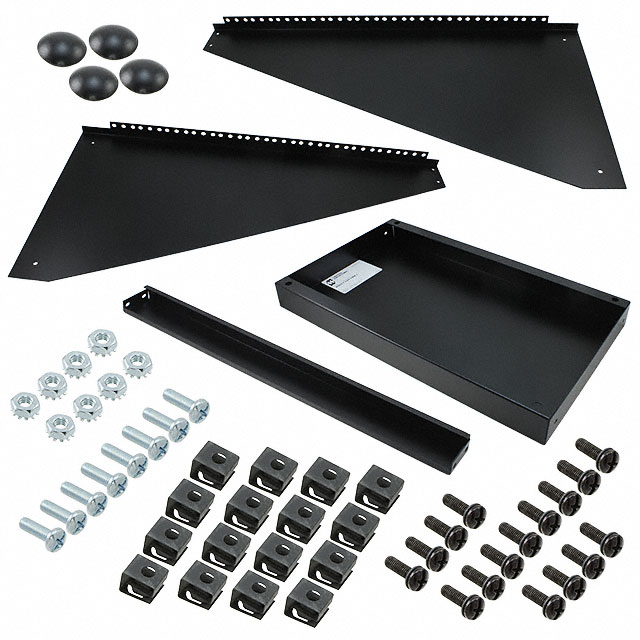

Metal, Steel Open Rack Open Rack, Single Frame 12.000" L x 20.375" W x 24.000" H (304.80mm x 517.53mm x 609.60mm) Black
Documents
Technical documentation and resources
