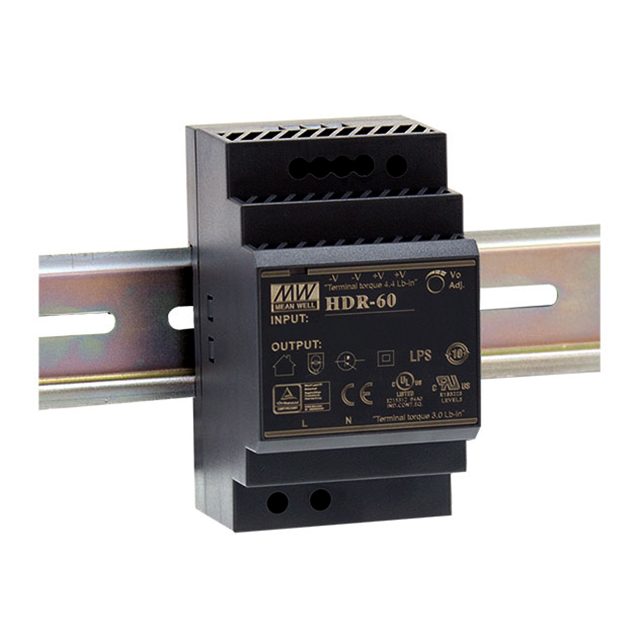

HDR-60-5

Active

MEAN WELL USA Inc.

AC/DC DIN RAIL SUPPLY 5V 33W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC DIN RAIL SUPPLY 5V 33W

Technical Specifications

Parameters and characteristics for this part

Specification	HDR-60-5

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	Industrial, ITE (Commercial)
Approval Agency	cURus, TUV, CB, cULus, CE
Current - Output (Max) [Max]	6.5 A
DC Voltage - Input (Max) [Max]	370 V
DC Voltage - Input (Min) [Min]	120 V
Efficiency	85 %
Features	Adjustable Output, Universal Input
Input Type	AC or DC
Minimum Load Required	False
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 °C
Power (Watts)	33 W
Size / Dimension [x]	2.15 "
Size / Dimension [x]	54.5 mm
Size / Dimension [y]	52.5 mm
Size / Dimension [y]	2.07 in
Size / Dimension [z]	90 mm
Size / Dimension [z]	3.54 "
Voltage - Isolation	4000 V
Voltage - Output 1	5 V

Part	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Input Type	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Current - Output (Max) [Max]	Applications	Efficiency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Minimum Load Required	Features	Voltage - Output 1	DC Voltage - Input (Max) [Max]	DC Voltage - Input (Min) [Min]	Approval Agency	Voltage - Isolation
MEAN WELL USA Inc. HDR-60-5	1	70 °C	-30 °C	33 W	AC or DC	85 VAC	264 VAC	6.5 A	Industrial ITE (Commercial)	85 %	52.5 mm	90 mm	3.54 "	2.07 in	2.15 "	54.5 mm		Adjustable Output Universal Input	5 V	370 V	120 V	CB CE cULus cURus TUV	4000 V
MEAN WELL USA Inc. HDR-60-48	1	70 °C	-30 °C		AC or DC	85 VAC	264 VAC	1.25 A	Industrial ITE (Commercial)	91 %	52.5 mm	90 mm	3.54 "	2.07 in	2.15 "	54.5 mm		Adjustable Output Universal Input	48 V	370 V	120 V	CB CE cULus cURus TUV	4000 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC/DC DIN RAIL SUPPLY 5V 33W
