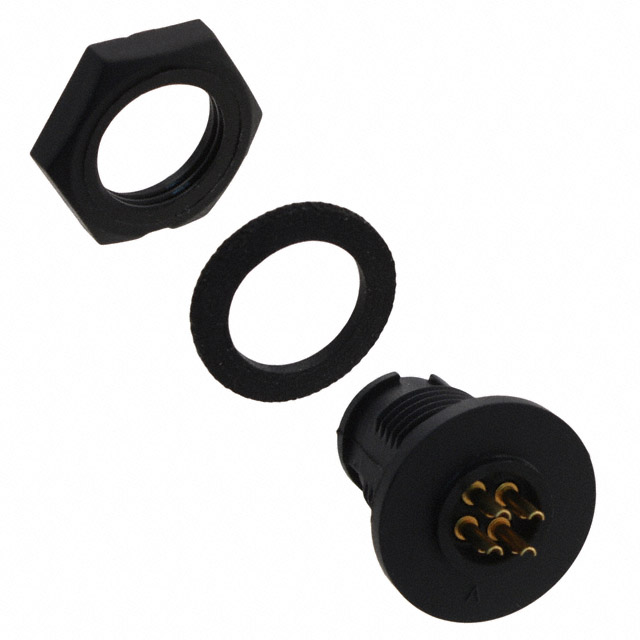

17882-4PG-300
ActiveConxall/Switchcraft
CONN RCPT MALE 4P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
17882-4PG-300
ActiveConxall/Switchcraft
CONN RCPT MALE 4P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 17882-4PG-300 |
|---|---|
| Applications | Medical, Data, Instrumentation, Industrial |
| Color | Black |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 6 A |
| Fastening Type | Bayonet Lock |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 HB |
| Mounting Feature | Bulkhead - Front Side Nut |
| Number of Positions | 4 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shielding | Unshielded |
| Voltage Rating | 600 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.25 | |
| 10 | $ 8.32 | |||
| 25 | $ 7.84 | |||
| 50 | $ 7.64 | |||
| 100 | $ 7.44 | |||
| 300 | $ 6.63 | |||
| 500 | $ 6.23 | |||
| 1000 | $ 5.51 | |||
Description
General part information
17882-4P Series
4 Position Circular Connector Receptacle, Male Pins Solder Cup
