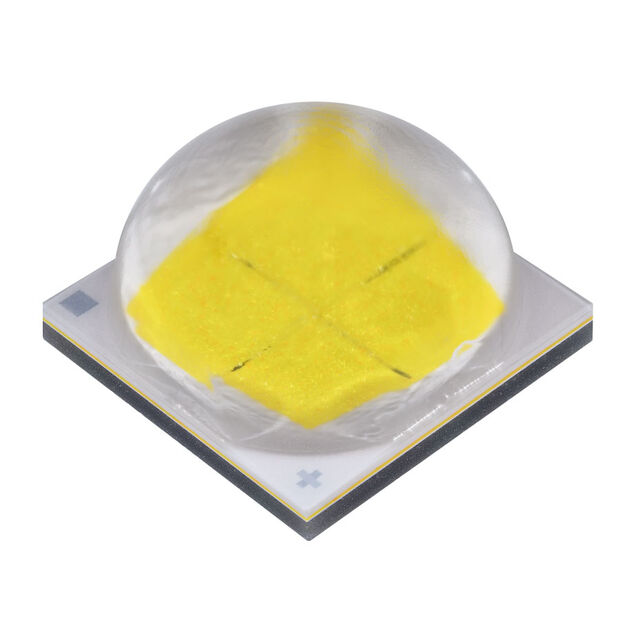

XHP50D-00-0000-0D0UG40E2

Active

Cree LED

LED XLAMP COOL WHITE 5700K 2020

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XHP50D-00-0000-0D0UG40E2

Active

Cree LED

LED XLAMP COOL WHITE 5700K 2020

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XHP50D-00-0000-0D0UG40E2

CCT (K)	5700 K
Color	Cool, White
CRI (Color Rendering Index)	90
Current - Max [Max]	1.5 A
Height - Seated (Max) [Max] [z]	0.146 "
Height - Seated (Max) [Max] [z]	3.71 mm
Mounting Type	Surface Mount
Package / Case	2020
Package / Case	5050 Metric
Size / Dimension [x]	0.197 in
Size / Dimension [x]	5 mm
Size / Dimension [y]	5 mm
Size / Dimension [y]	0.197 "
Supplier Device Package	2020
Thermal Resistance of Package	0.4 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	11.2 V

XHP50D Series

...

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Forward (Vf) (Typ)	Color	Supplier Device Package	CCT (K)	Package / Case	Package / Case	Mounting Type	Viewing Angle	Thermal Resistance of Package	CRI (Color Rendering Index)	Lumens/Watt @ Current - Test	Current - Max [Max]	Flux @ 85°C, Current - Test	Flux @ 85°C, Current - Test [Max]	Flux @ 85°C, Current - Test [Min]
Cree LED XHP50D-H0-0000-0D0HH230H	1.13 mm	0.044 "	0.197 in	5 mm	0.197 "	5 mm	11.2 V	Warm White	2020	3000 K	2020	5050 Metric	Surface Mount	120 °	0.4 °C/W	80	119 lm/W	1.5 A
Cree LED XHP50D-00-0000-0D0BJ20DT	3.71 mm	0.146 "	0.197 in	5 mm	0.197 "	5 mm	11.2 V	Cool White	2020	7000 K	2020	5050 Metric	Surface Mount	120 °	0.4 °C/W	70		1.5 A
Cree LED XHP50D-00-0000-0D0HJ235H	3.71 mm	0.146 "	0.197 in	5 mm	0.197 "	5 mm	11.2 V	Warm White	2020	3500 K	2020	5050 Metric	Surface Mount	120 °	0.4 °C/W	80	138 lm/W	1.5 A	1080 lm
Cree LED XHP50D-H0-0000-0D0BJ235E	1.13 mm	0.044 "	0.197 in	5 mm	0.197 "	5 mm	11.2 V	Warm White	2020		2020	5050 Metric	Surface Mount	120 °	0.4 °C/W	70	138 lm/W	1.5 A	1080 lm
Cree LED XHP50D-00-0000-0D0UG40E2	3.71 mm	0.146 "	0.197 in	5 mm	0.197 "	5 mm	11.2 V	Cool White	2020	5700 K	2020	5050 Metric	Surface Mount	120 °	0.4 °C/W	90		1.5 A
Cree LED XHP50D-00-0000-0D0HH235G	3.71 mm	0.146 "	0.197 in	5 mm	0.197 "	5 mm	11.2 V	Warm White	2020	3500 K	2020	5050 Metric	Surface Mount	120 °	0.4 °C/W	80		1.5 A
Cree LED XHP50D-00-0000-0D0HH427G	3.71 mm	0.146 "	0.197 in	5 mm	0.197 "	5 mm	11.2 V	Warm White	2020	2700 K	2020	5050 Metric	Surface Mount	120 °	0.4 °C/W	80	128 lm/W	1.5 A	1005 lm	1040 lm	970 lm
Cree LED XHP50D-H0-0000-0D0HH20DV	1.13 mm	0.044 "	0.197 in	5 mm	0.197 "	5 mm	11.2 V	Cool White	2020	6000 K	2020	5050 Metric	Surface Mount	120 °	0.4 °C/W	80	119 lm/W	1.5 A
Cree LED XHP50D-00-0000-0D0BJ245E	3.71 mm	0.146 "	0.197 in	5 mm	0.197 "	5 mm	11.2 V	Neutral White	2020	4500 K	2020	5050 Metric	Surface Mount	120 °	0.4 °C/W	70		1.5 A
Cree LED XHP50D-H0-B001-AD0UG40E2	1.13 mm	0.044 "	0.197 in	5 mm	0.197 "	5 mm	11.2 V	Cool White	2020	5700 K	2020	5050 Metric	Surface Mount	120 °	0.4 °C/W	90	111 lm/W	1.5 A	870 lm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 4.88
		1	$ 4.88
		10	$ 4.64
		10	$ 4.64
		50	$ 4.50
		50	$ 4.50
		100	$ 4.15
		100	$ 4.15
		200	$ 3.77
		200	$ 3.77
	Digi-Reel®	1	$ 4.88
		1	$ 4.88
		10	$ 4.64
		10	$ 4.64
		50	$ 4.50
		50	$ 4.50
		100	$ 4.15
		100	$ 4.15
		200	$ 3.77
		200	$ 3.77
	Tape & Reel (TR)	500	$ 3.53
		500	$ 3.53
		1000	$ 3.25
		1000	$ 3.25

Description

General part information

XHP50D Series

LED Lighting XLamp® XHP50.3 White, Cool 5700K 11.2V 700mA 120° 2020 (5050 Metric)

Documents

Technical documentation and resources
