H6MMS-2036M
ActiveAssmann WSW Components
DIP CBL - HHDM20S/AE20M/HHDM20S
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | H6MMS-2036M |
|---|---|
| Cable Termination | IDC |
| Color | Ribbon, Multiple |
| Connector Type | DIP to DIP |
| Contact Finish | Tin |
| Length [x] | 3 ft |
| Length [x] | 914.4 mm |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Pitch - Cable | 0.05 " |
| Pitch - Cable | 1.27 mm |
| Pitch - Connector | 0.1 in |
| Pitch - Connector | 2.54 mm |
| Shielding | Unshielded |
| Usage | Board In, Socket (0.1") |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.68 | |
| 10 | $ 4.25 | |||
| 25 | $ 4.03 | |||
| 50 | $ 3.93 | |||
| 100 | $ 3.75 | |||
| 250 | $ 3.28 | |||
| 500 | $ 3.18 | |||
| 1000 | $ 2.72 | |||
| 2500 | $ 2.53 | |||
Description
General part information
H6MMS-20 Series

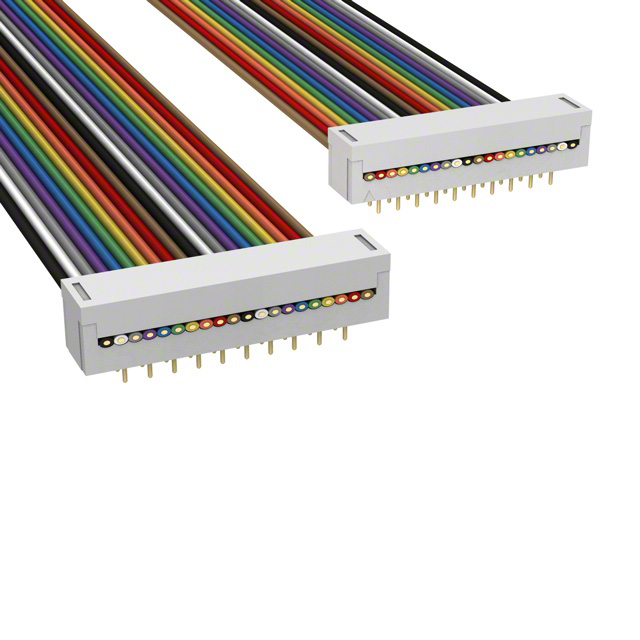

20 Position Cable Assembly Rectangular DIP to DIP 3.00' (914.40mm)
