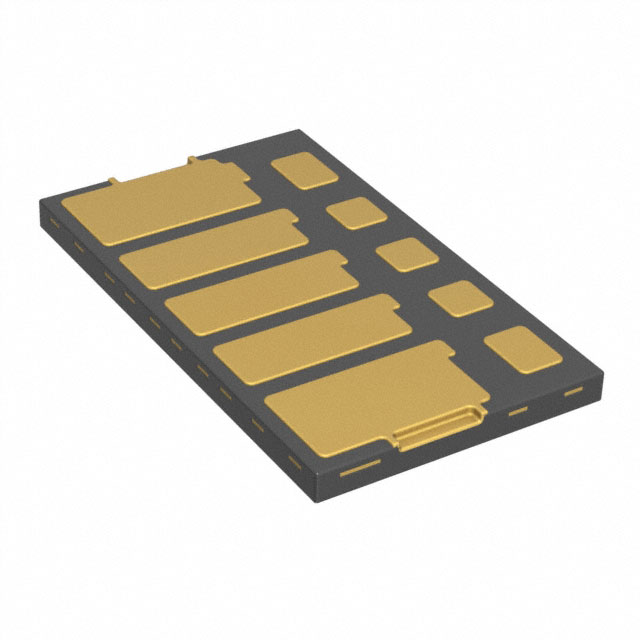

KW H5L531.TE-7R6S-EBVF46FCBB46-RSSR

Active

ams-OSRAM USA INC.

LED OSLON WHITE SMD

Search across all available documentation for this part.

Active

ams-OSRAM USA INC.

LED OSLON WHITE SMD

Technical Specifications

Parameters and characteristics for this part

Specification	KW H5L531.TE-7R6S-EBVF46FCBB46-RSSR

Color	White
Current - Max [Max]	1.2 A
Current - Test	1 A
Flux @ 25°C, Current - Test	1820 lm
Height - Seated (Max) [Max] [z]	0.49 mm
Height - Seated (Max) [Max] [z]	0.019 in
Lumens/Watt @ Current - Test	119 lm/W
Mounting Type	Surface Mount
Package / Case	10-SMD, No Lead
Size / Dimension [x]	6.4 mm
Size / Dimension [x]	0.252 in
Size / Dimension [y]	3.75 mm
Size / Dimension [y]	0.148 in
Supplier Device Package	SMD
Thermal Resistance of Package [diameter]	1.1 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	15.3 V

Part	Current - Test	Color	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current - Max [Max]	Mounting Type	Package / Case	Thermal Resistance of Package	Voltage - Forward (Vf) (Typ)	Lumens/Watt @ Current - Test	Viewing Angle	Supplier Device Package	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Thermal Resistance of Package [diameter]	Flux @ 25°C, Current - Test
ams-OSRAM USA INC. KW H5L531.TE-Z7R7-EBVFFCBB46-RS5R	1 A	White	0.49 mm	0.019 in	1.2 A	Surface Mount	10-SMD No Lead	0.9 °C/W	15.3 V	119 lm/W	120 °	SMD	3.75 mm	6.4 mm	0.148 in	0.252 in
ams-OSRAM USA INC. KW H5L531.TE-7R6S-EBVF46FCBB46-RSSR	1 A	White	0.49 mm	0.019 in	1.2 A	Surface Mount	10-SMD No Lead		15.3 V	119 lm/W	120 °	SMD	3.75 mm	6.4 mm	0.148 in	0.252 in	1.1 °C/W	1820 lm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting OSLON® Black Flat White 15.3V 1A 120° 10-SMD, No Lead
