2SA09000R

Obsolete

Panasonic Industrial Automation Sales

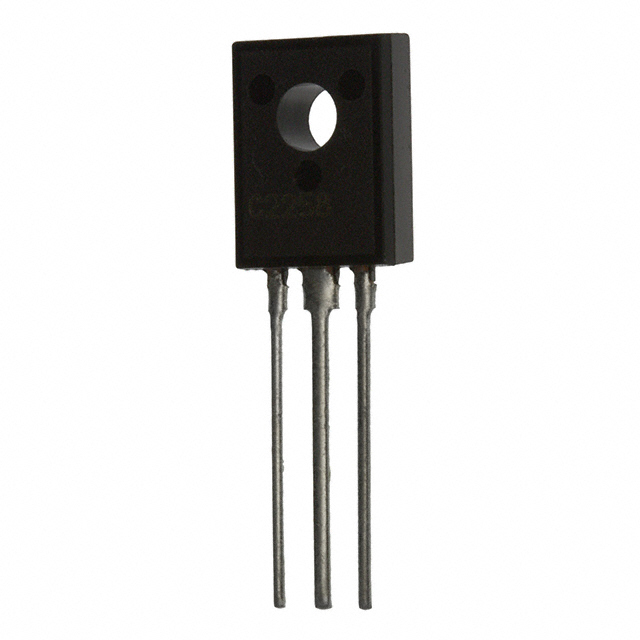

TRANS PNP 18V 1A TO126B-A1

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

TRANS PNP 18V 1A TO126B-A1

Technical Specifications

Parameters and characteristics for this part

Specification	2SA09000R

Current - Collector (Ic) (Max) [Max]	1 A
Current - Collector Cutoff (Max) [Max]	10 µA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	130
Frequency - Transition	200 MHz
Mounting Type	Through Hole
Operating Temperature	150 °C
Package / Case	TO-225AA, TO-126-3
Power - Max [Max]	1.2 W
Supplier Device Package	TO-126B-A1
Transistor Type	PNP
Vce Saturation (Max) @ Ib, Ic	500 mV
Voltage - Collector Emitter Breakdown (Max)	18 V

Part	Voltage - Collector Emitter Breakdown (Max)	Frequency - Transition	Current - Collector Cutoff (Max) [Max]	Package / Case	Vce Saturation (Max) @ Ib, Ic	Operating Temperature	Transistor Type	Power - Max [Max]	Current - Collector (Ic) (Max) [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Mounting Type	Supplier Device Package
Panasonic Industrial Automation Sales 2SA09000R	18 V	200 MHz	10 µA	TO-126-3 TO-225AA	500 mV	150 °C	PNP	1.2 W	1 A	130	Through Hole	TO-126B-A1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bipolar (BJT) Transistor PNP 18 V 1 A 200MHz 1.2 W Through Hole TO-126B-A1
