MV14-6FBX-BOTTLE

Active

3M (TC)

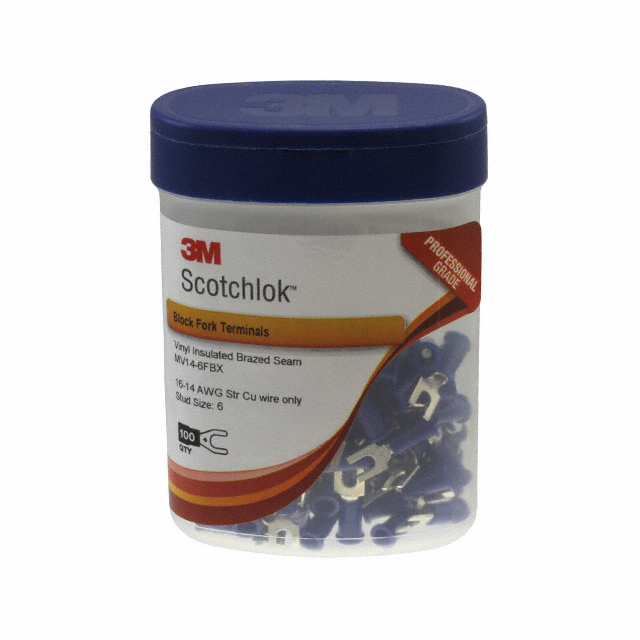

CONN SPADE TERM 14-16AWG 6 100PC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MV14-6FBX-BOTTLE

Active

3M (TC)

CONN SPADE TERM 14-16AWG 6 100PC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MV14-6FBX-BOTTLE

Color	Blue
Contact Finish	Tin
Contact Material	ETP, Copper
Features	Brazed Seam
Insulation	Insulated
Length - Overall [x]	21.59 mm
Length - Overall [x]	0.85 "
Length - Ring Center to Termination [x]	0.25 in
Length - Ring Center to Termination [x]	6.35 mm
Length - Termination [x]	0.45 in
Length - Termination [x]	11.43 mm
Material - Insulation	Vinyl
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	6 Stud
Terminal Type	Standard
Termination	Crimp

MV14 Series

Part	Material - Insulation	Length - Overall	Length - Overall	Thickness	Thickness	Color	Width - Outer Edges [y]	Width - Outer Edges [y]	Contact Finish	Features	Stud/Tab Size	Mounting Type	Termination	Terminal Type	Contact Material	Insulation	Length - Overall [x]	Width - Outer Edges	Stud/Tab Size	Length - Termination [x]	Length - Termination [x]	Width - Outer Edges	Length - Ring Center to Termination	Length - Ring Center to Termination	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Length - Overall [x]	Number of Wire Entries
3M (TC) MV14-10RK	Vinyl	0.9 in	22.86 mm	0.03 in	0.76 mm	Blue	0.33 in	8.38 mm	Tin	Brazed Seam	10 Stud	Free Hanging (In-Line)	Crimp	Circular	Copper ETP	Insulated
3M (TC) MV14-8R/LX-BOTTLE	Vinyl		23.62 mm	0.03 in	0.76 mm	Blue	0.31 in			Brazed Seam		Free Hanging (In-Line)	Crimp	Circular		Insulated	0.93 in	7.87 mm	8 Stud
3M (TC) MV14-10FX-BOTTLE	Vinyl	0.9 in	22.86 mm			Blue			Tin	Brazed Seam	10 Stud	Free Hanging (In-Line)	Crimp	Standard	Copper ETP	Insulated		8.64 mm		0.45 in	11.43 mm	0.34 in	0.29 in	7.37 mm
3M (TC) MV14-10R/LK	Vinyl		23.62 mm	0.03 in	0.76 mm	Blue	0.31 in		Tin	Brazed Seam	10 Stud	Free Hanging (In-Line)	Crimp	Circular	Copper ETP	Insulated	0.93 in	7.87 mm
3M (TC) MV14-6FB/SX-BOTTLE	Vinyl					Blue	0.25 "	6.35 mm	Tin	Brazed Seam	6 Stud	Free Hanging (In-Line)	Crimp	Standard	Copper ETP	Insulated	0.85 "			0.45 in	11.43 mm				0.25 in	6.35 mm	21.59 mm
3M (TC) MV14-516R/SX-BOTTLE	Vinyl			0.03 in	0.76 mm	Blue	0.47 in	11.94 mm	Tin	Brazed Seam	0.3125 Stud	Free Hanging (In-Line)	Crimp	Circular	Copper ETP	Insulated
3M (TC) MV14-6FBK	Vinyl					Blue			Tin	Brazed Seam	6 Stud	Free Hanging (In-Line)	Crimp	Standard	Copper ETP	Insulated	0.85 "			0.45 in	11.43 mm				0.25 in	6.35 mm	21.59 mm
3M (TC) MV14-6FBX-BOTTLE	Vinyl					Blue			Tin	Brazed Seam	6 Stud	Free Hanging (In-Line)	Crimp	Standard	Copper ETP	Insulated	0.85 "			0.45 in	11.43 mm				0.25 in	6.35 mm	21.59 mm
3M (TC) MV14-10FBK	Vinyl					Blue			Tin	Brazed Seam	10 Stud	Free Hanging (In-Line)	Crimp	Standard	Copper ETP	Insulated	0.85 "			0.45 in	11.43 mm				0.25 in	6.35 mm	21.59 mm
3M (TC) MV14BCK						Blue							Crimp	Butt Splice Individual Openings Inline		Fully Insulated												2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 51.56

Description

General part information

MV14 Series

Blue 6 Stud Spade Terminal Connector Crimp 14-16 AWG
