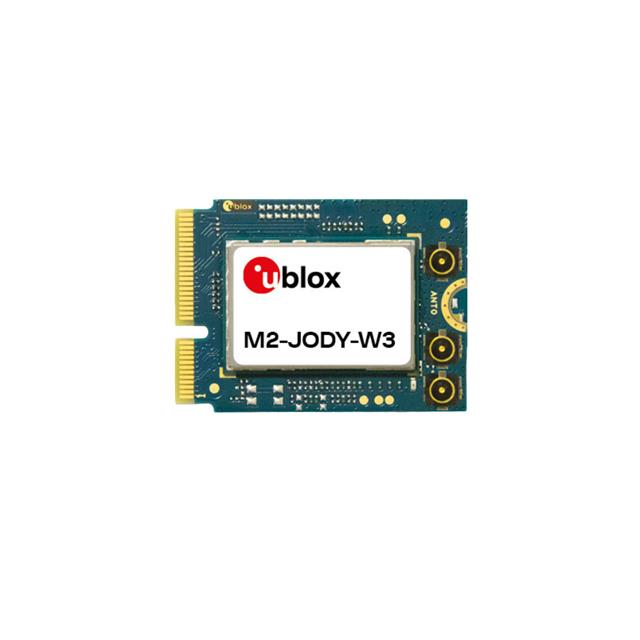

M2-JODY-W377-10C

Active

u-blox

RF TXRX MOD BT I U.FL (X3) CARD

Search across all available documentation for this part.

Active

u-blox

RF TXRX MOD BT I U.FL (X3) CARD

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Supply	Mounting Type	Antenna Type	Power - Output	Data Rate	Package / Case	RF Family/Standard	Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Serial Interfaces	Utilized IC / Part	Protocol
u-blox M2-JODY-W377-10C	1.8 V 3.3 V	Card Edge	PCB (x3) U.FL	19 dBm	2 Mbps	Module	Bluetooth WiFi	2.4 GHz 5 GHz	85 °C	-40 °C	GPIO HCI I2S PCM SDIO UART	NXP Q9098	802.11ax Bluetooth v5.3 + EDR
u-blox M2-JODY-W263-00C	1.8 V 3.3 V	Card Edge	Chip Integrated U.FL	18 dBm	433 Mbps	Module	Bluetooth WiFi	2.4 GHz 5 GHz	85 °C	-40 °C	GPIO HCI PCM SDIO SPI UART	NXP 88W8987	802.11a/b/g/-c Bluetooth v5.2 + EDR
u-blox M2-JODY-W377-00C	1.8 V 3.3 V	Card Edge	Chip Integrated U.FL	19 dBm	1.2 Gbps	Module	Bluetooth WiFi	2.4 GHz 5 GHz	85 °C	-40 °C	GPIO HCI I2S PCM SDIO UART	NXP Q9098	802.11ax Bluetooth v5.3 + EDR

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bluetooth, WiFi 802.11ax, Bluetooth v5.3 + EDR Transceiver Module 2.4GHz, 5GHz U.FL, PCB (x3) Card Edge
