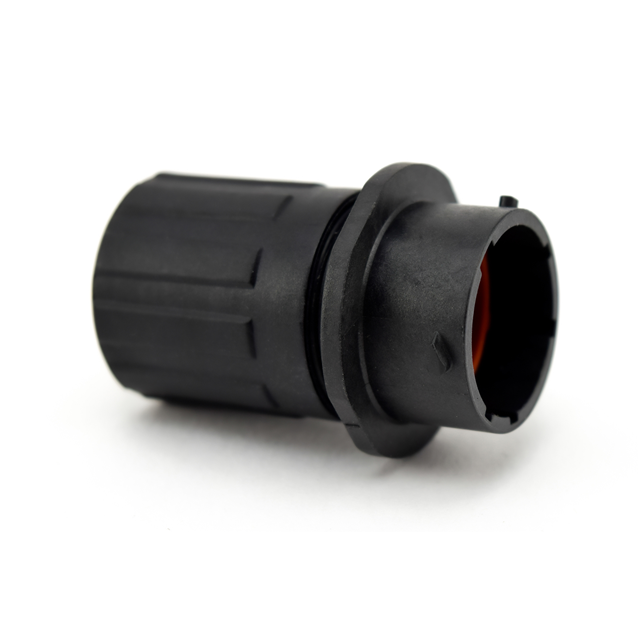

RTS1BS10N6PHEC03

Active

Amphenol Sine Systems Corp

RECEPTACLE, INLINE, 6 POSITION,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsEco|mate® Aquarius™ Flyer Datasheet +1

RTS1BS10N6PHEC03

Active

Amphenol Sine Systems Corp

RECEPTACLE, INLINE, 6 POSITION,

Deep-Dive with AI

DocumentsEco|mate® Aquarius™ Flyer Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RTS1BS10N6PHEC03

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	20
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Black
Includes	1 Connector, 1 O-Ring, 1 Seal, 1 Gasket
Ingress Protection	IP69K, IP67
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	6
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Size - Insert	10-6
Shielding	Unshielded
Type	For Male Pins

RTS1BS10 Series

Part	Orientation	Shielding	Includes	Number of Positions	Contact Type	Type	Ingress Protection	Contact Shape	Material Flammability Rating	Fastening Type	Mounting Type	Note	Insert Material	Connector Type	Contact Size	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Shell Size - Insert	Features	Contact Size	Primary Material
Amphenol Sine Systems Corp RTS1BS10N6PHEC03	N	Unshielded	1 Connector 1 Gasket 1 O-Ring 1 Seal	6	Crimp	For Male Pins	IP67 IP69K	Circular	UL94 V-0	Bayonet Lock	Free Hanging (In-Line)	Contacts Not Included	Thermoplastic	Receptacle Housing	20	125 °C	-40 °C	Black	10-6
Amphenol Sine Systems Corp RTS1BS10N4P03	N	Unshielded	6 pcs - 1 Connector 1 Backshell 1 Clamp Ring 1 Nut 1 O-Ring 1 Seal	4	Crimp	For Male Pins	IP67 IP69K	Circular	UL94 V-0	Bayonet Lock	Free Hanging (In-Line)	Contacts Not Included	Thermoplastic	Receptacle Housing	16	125 °C	-40 °C	Black	10-4	Backshell
Amphenol Sine Systems Corp RTS1BS10N3W3S03	N	Unshielded		6	Crimp	For Female Sockets	IP67 IP69K	Circular	UL94 V-0	Bayonet Lock	Free Hanging (In-Line)	Contacts Not Included	Thermoplastic	Receptacle Housing		125 °C	-40 °C	Black	10-3W3	Backshell	16 (3) 20 (3)	Plastic
Amphenol Sine Systems Corp RTS1BS10N6S03	N	Unshielded	6 pcs - 1 Connector 1 Backshell 1 Clamp Ring 1 Nut 1 O-Ring 1 Seal	6	Crimp	For Female Sockets	IP67 IP69K	Circular	UL94 V-0	Bayonet Lock	Free Hanging (In-Line)	Contacts Not Included	Thermoplastic	Receptacle Housing	20	125 °C	-40 °C	Black	10-6	Backshell
Amphenol Sine Systems Corp RTS1BS10N3W3P03	N	Unshielded		6	Crimp	For Male Pins	IP67 IP69K	Circular	UL94 V-0	Bayonet Lock	Free Hanging (In-Line)	Contacts Not Included	Thermoplastic	Receptacle Housing		125 °C	-40 °C	Black	10-3W3	Backshell	16 (3) 20 (3)	Plastic
Amphenol Sine Systems Corp RTS1BS10N3S03	N	Unshielded	6 pcs - 1 Connector 1 Backshell 1 Clamp Ring 1 Nut 1 O-Ring 1 Seal		Crimp	For Female Sockets	IP67 IP69K	Circular	UL94 V-0	Bayonet Lock	Free Hanging (In-Line)	Contacts Not Included	Thermoplastic	Receptacle Housing	16	125 °C	-40 °C	Black	10-3	Backshell

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 12.27
		10	$ 10.43
		25	$ 9.78
		50	$ 9.31
		100	$ 8.87
		250	$ 8.31
		500	$ 7.91
		1000	$ 7.54

Description

General part information

RTS1BS10 Series

6 Position Circular Connector Receptacle Housing Free Hanging (In-Line)

Documents

Technical documentation and resources

Eco|mate® Aquarius™ Flyer

Datasheet

ecomate-Family-Flyer-2019

Datasheet
