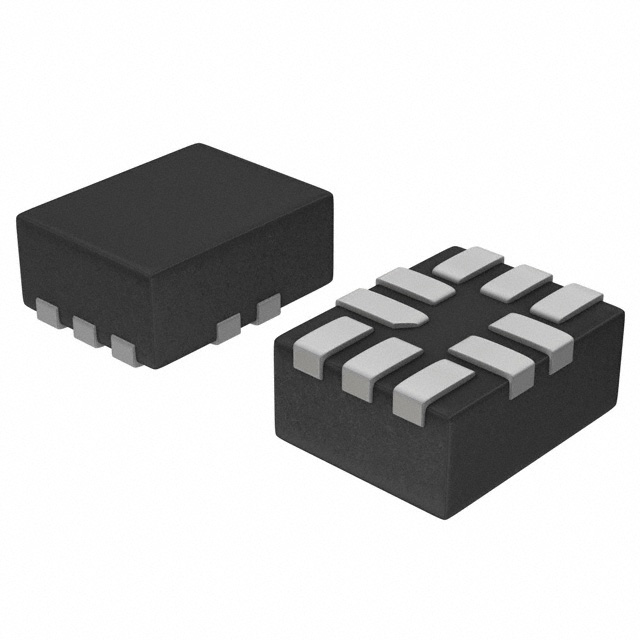

SLAS5223MNR2G

Obsolete

ON Semiconductor

IC SWITCH SPDTX2 300MOHM 10WQFN

Search across all available documentation for this part.

Obsolete

ON Semiconductor

IC SWITCH SPDTX2 300MOHM 10WQFN

Technical Specifications

Parameters and characteristics for this part

Specification	SLAS5223MNR2G

-3db Bandwidth	17 MHz
Channel Capacitance (CS(off), CD(off)) [custom]	3.5 pF
Channel-to-Channel Matching (ΔRon)	50 mOhm
Charge Injection	38 pC
Crosstalk	-70 dB
Current - Leakage (IS(off)) (Max)	10 nA
Mounting Type	Surface Mount
Multiplexer/Demultiplexer Circuit	2:1
Number of Circuits	2
On-State Resistance (Max) [Max]	300 mOhm
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	10-WFQFN
Supplier Device Package	10-WQFN, 1.4x1.8
Switch Circuit	SPDT
Switch Time (Ton, Toff) (Max) [custom]	30 ns
Switch Time (Ton, Toff) (Max) [custom]	50 ns
Voltage - Supply, Single (V+) [Max]	3.6 V
Voltage - Supply, Single (V+) [Min]	1.65 V

Part	Channel Capacitance (CS(off), CD(off)) [custom]	Switch Circuit	-3db Bandwidth	Multiplexer/Demultiplexer Circuit	Number of Circuits	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Crosstalk	On-State Resistance (Max) [Max]	Voltage - Supply, Single (V+) [Min]	Voltage - Supply, Single (V+) [Max]	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Charge Injection	Mounting Type	Current - Leakage (IS(off)) (Max)	Channel-to-Channel Matching (ΔRon)	Package / Case
ON Semiconductor SLAS5223MNR2G	3.5 pF	SPDT	17 MHz	2:1	2	85 °C	-40 °C	1.4x1.8 10-WQFN	-70 dB	300 mOhm	1.65 V	3.6 V	30 ns	50 ns	38 pC	Surface Mount	10 nA	50 mOhm	10-WFQFN

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

2 Circuit IC Switch 2:1 300mOhm 10-WQFN (1.4x1.8)
