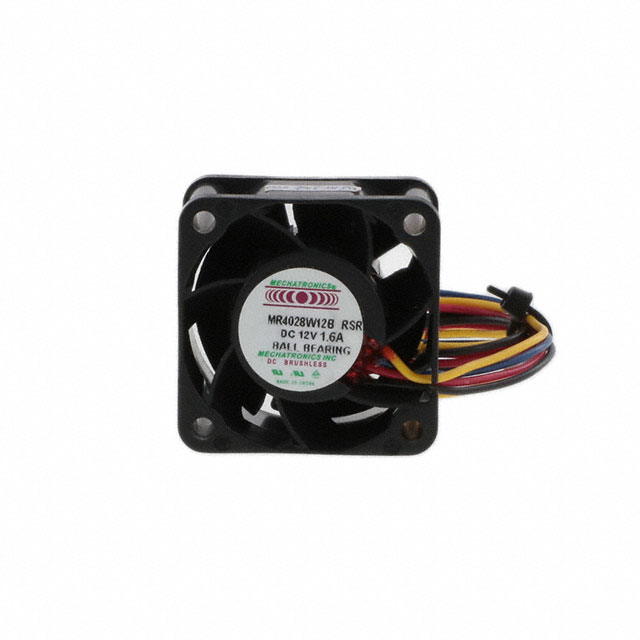

MR4028W12B1+6-RSR

Active

Mechatronics Bearing Group

FAN AXIAL 40X28MM 12VDC WIRE

Search across all available documentation for this part.

Active

Mechatronics Bearing Group

FAN AXIAL 40X28MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	MR4028W12B1+6-RSR

Air Flow	0.913 mł/min
Air Flow	32.6 CFM
Bearing Type	Ball
Current Rating (Amps)	1.6 A
Fan Type	Tubeaxial
Features	Auto Restart, Speed Sensor (Tach), PWM Control
Lifetime @ Temp.	70000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	65 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	19.2 W
RPM	24000 RPM
Size / Dimension	Square
Size / Dimension [x]	40 mm
Size / Dimension [z]	40 mm
Static Pressure	3.65 in H2O
Static Pressure	909.2 Pa
Termination	4 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	14 V
Voltage Range [Min]	8 VDC
Width [y]	28 mm

Part	RPM	Voltage - Rated	Static Pressure	Static Pressure	Width [y]	Features	Lifetime @ Temp.	Noise	Voltage Range [Min]	Voltage Range [Max]	Power (Watts)	Current Rating (Amps)	Bearing Type	Termination	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Air Flow	Air Flow	Fan Type	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Material - Blade
Mechatronics Bearing Group MR4028W12B1+6-RSR	24000 RPM	12 VDC	3.65 in H2O	909.2 Pa	28 mm	Auto Restart PWM Control Speed Sensor (Tach)	70000 Hrs	65 dB	8 VDC	14 V	19.2 W	1.6 A	Ball	4 Wire Leads	40 mm	Square	40 mm	0.913 mł/min	32.6 CFM	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	Polybutylene Terephthalate (PBT)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.56

General part information

Fan Tubeaxial 12VDC Square - 40mm L x 40mm H Ball 32.6 CFM (0.913mł/min) 4 Wire Leads
