7908-25FTA

Active

Oupiin

D-SUB CRIMP CUP, MALE, 25 PINS,

Search across all available documentation for this part.

Active

Oupiin

D-SUB CRIMP CUP, MALE, 25 PINS,

Technical Specifications

Parameters and characteristics for this part

Specification	7908-25FTA

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle for Female Contacts
Contact Type	Signal
Dielectric Material	Polybutylene Terephthalate (PBT)
Flange Feature	Housing/Shell (Unthreaded)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3

Part	Shell Material, Finish	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Type	Note	Dielectric Material	Color	Flange Feature	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Connector Type	Connector Style	Mounting Type
Oupiin 7908-25FTA	Nickel Plated Steel	B DB	3	Signal	Contacts Not Included	Polybutylene Terephthalate (PBT)	Black	Housing/Shell (Unthreaded)	105 ░C	-55 °C	2	Receptacle for Female Contacts	D-Sub	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

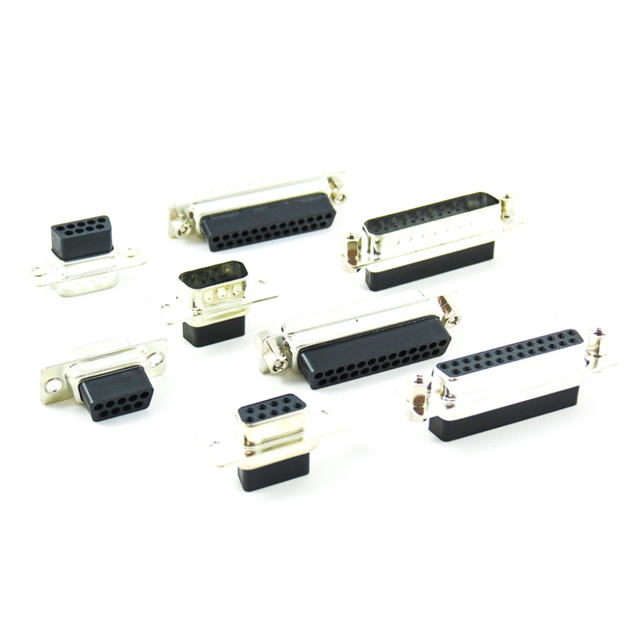

Receptacle for Female Contacts Housing D-Sub Connector 25 Position

Technical documentation and resources

No documents available
