IS-ENG-KIT-6-SH
ActiveDEVELOPMENT KIT, LCD PROGRAMMABLE RGB STANDARD/HYBRID SWITCHES
Deep-Dive with AI
Search across all available documentation for this part.
IS-ENG-KIT-6-SH
ActiveDEVELOPMENT KIT, LCD PROGRAMMABLE RGB STANDARD/HYBRID SWITCHES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IS-ENG-KIT-6-SH |
|---|---|
| Embedded | True |
| Function | Switches with Programmable Display |
| Supplied Contents | Board(s) |
| Type | Electromechanical |
| Utilized IC / Part | IS15EBFP4RGB-09YN, IS15EBFP4RGB |
IS-ENG Series
| Part | Contents | Function | Supplied Contents | Embedded | Type | Utilized IC / Part |
|---|---|---|---|---|---|---|
NKK Switches | Board(s) | Switches with Programmable Display | Board(s) | Electromechanical | ||
NKK Switches | Switches with Programmable Display | Board(s) | Electromechanical | IS15EBFP4RGB IS15EBFP4RGB-09YN | ||
NKK Switches | Board(s) | Switches with Programmable Display | Board(s) | Electromechanical | ISF15ACP4 | |
NKK Switches | Board(s) | Switches with Programmable Display | Board(s) | Electromechanical | IS01EBFRGB IS15EBFP4RGB-09YN | |
NKK Switches | Switches with Programmable Display | Board(s) | Electromechanical | IS15EBFP4RGB-09YN IS15ESBFP4RGB | ||
NKK Switches | Switches with Programmable Display | Board(s) | Electromechanical | IS18WWC1W | ||
NKK Switches | Board(s) | Switches with Programmable Display | Board(s) | Electromechanical | IS15BBFP4RGB IS15BSBFP4RGB | |
NKK Switches | Board(s) | Switches with Programmable Display | Board(s) | Electromechanical | IS15BAFP4CF IS15BSAFP4CF |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
IS-ENG Series

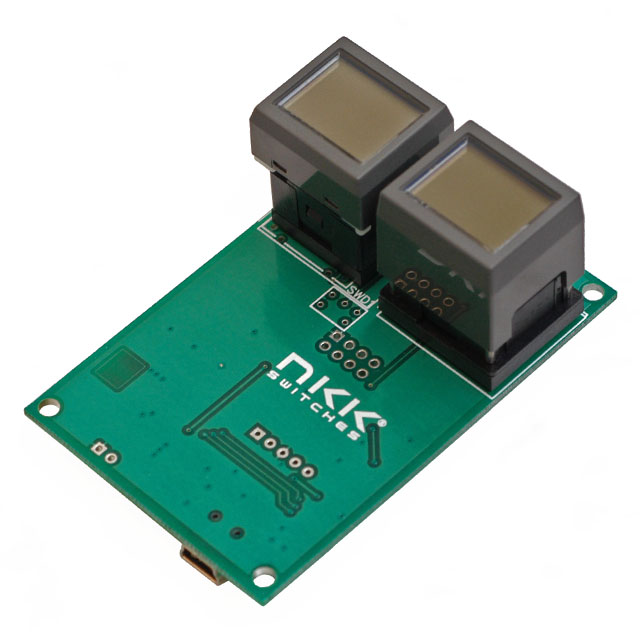

The IS-ENG-KIT-6-SH from NKK Switches is a SmartSwitch® engineering development kit. It controls two LCD 64x32 SmartSwitches/SmartDisplays. This simplified engineering development kit will serve as a starting point for engineers to test and design integration of the SmartSwitch into a variety of applications. The S02G1 controller is used for LCD 64x32 engineering kits. The kit includes schematics, firmware, software source codes, on-board memory and a USB connection. The schematic and source codes are provided in C language.
