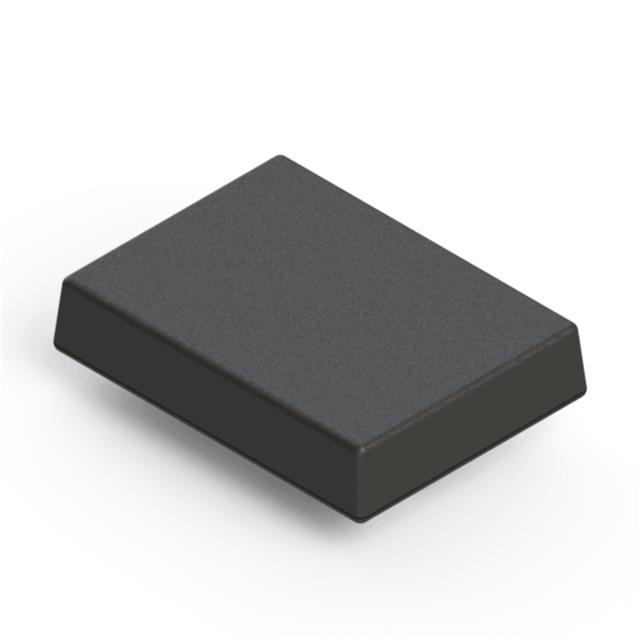

031,BK

Active

Serpac

BOX ABS BLACK 4.38"L X 3.25"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS BLACK 4.38"L X 3.25"W

Technical Specifications

Parameters and characteristics for this part

Specification	031,BK

Area (L x W)	14.2 in²
Area (L x W)	92 cm˛
Color	Black
Container Type	Box
Features	PCB Supports
Height [z]	22.86 mm
Height [z]	0.9 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Thickness	2.54 mm
Thickness	0.1 in
Weight	0.15 lbs
Weight	68.04 g

Part	Features	Thickness	Thickness	Area (L x W)	Area (L x W)	Container Type	Ratings	Weight	Weight	Color	Material Flammability Rating	Material	Height [z]	Height [z]
Serpac 031,AL	PCB Supports	2.54 mm	0.1 in	14.2 in²	92 cm˛	Box	IP40 NEMA 1	0.15 lbs	68.04 g	Almond	UL94 HB	Plastic ABS	22.86 mm	0.9 in
Serpac 031,BK-BULK	PCB Supports	2.54 mm	0.1 in	14.2 in²	92 cm˛	Box	IP40 NEMA 1	0.15 lbs	68.04 g	Black	UL94 HB	Plastic ABS	22.86 mm	0.9 in
Serpac 031,BK	PCB Supports	2.54 mm	0.1 in	14.2 in²	92 cm˛	Box	IP40 NEMA 1	0.15 lbs	68.04 g	Black	UL94 HB	Plastic ABS	22.86 mm	0.9 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, ABS Black 4.380" L x 3.250" W (111.25mm x 82.55mm) X 0.900" (22.86mm)

Technical documentation and resources
