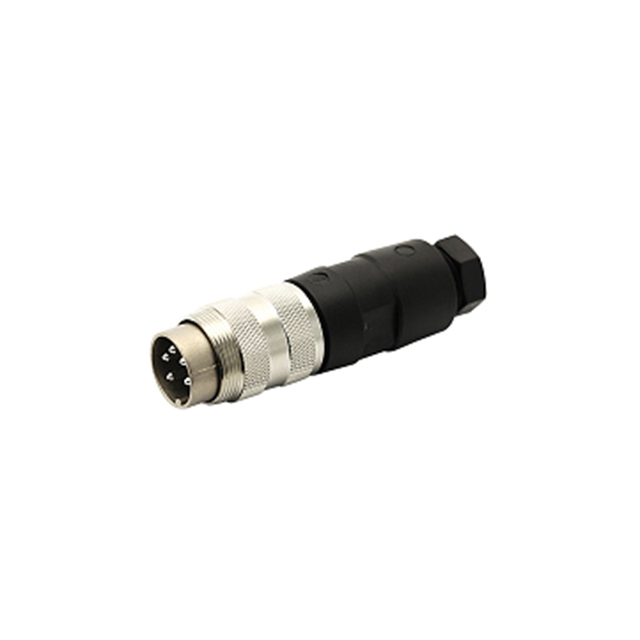

T 3356 004

Active

Amphenol Tuchel Industrial

CONN PLUG MALE 5P SILV SLDR CUP

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN PLUG MALE 5P SILV SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	T 3356 004

Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Silver
Current Rating (Amps)	7 A
Features	Stereo, Cable Clamp, Strain Relief
Ingress Protection	IP40
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Die Cast
Shell Size - Insert	M16-5(S)
Shielding	Shielded
Voltage Rating	250 VDC

Part	Ingress Protection	Voltage Rating	Shell Size - Insert	Color	Shell Finish	Primary Material	Shell Material	Mounting Type	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Orientation	Features	Shielding	Contact Finish - Mating	Contact Shape	Insert Material	Contact Size	Material Flammability Rating	Type	Housing Color	Note	Contact Type
Amphenol Tuchel Industrial T 3356 004	IP40	250 VDC	M16-5(S)	Silver	Nickel	Metal	Die Cast	Free Hanging (In-Line)	7 A	100 °C	-40 °C	Male Pins Plug	Keyed	Cable Clamp Stereo Strain Relief	Shielded	Silver
Amphenol Tuchel Industrial T 3356 551	IP40		M16-5(S)		Nickel		Die Cast	Free Hanging (In-Line)		100 °C	-40 °C	Plug Housing	Keyed	Cable Clamp Coupling Nut Stereo Strain Relief	Shielded		Circular	Thermoplastic	1.5 mm	UL94 V-0	For Male Pins	Silver	Contacts Not Included	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 10.22

General part information

5 Position Circular Connector Plug, Male Pins Solder Cup
