2-1625931-9
ActiveTE Connectivity Passive Product
POT 2.2K OHM 2W CERMET LINEAR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2-1625931-9
ActiveTE Connectivity Passive Product
POT 2.2K OHM 2W CERMET LINEAR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-1625931-9 |
|---|---|
| Actuator Length [x] | 1 in |
| Actuator Length [x] | 25.4 mm |
| Actuator Type | Round |
| Adjustment Type | Top Adjustment |
| Built in Switch | False |
| Bushing Thread | 3/8-32 |
| Number of Gangs | 1 |
| Number of Turns | 1 |
| Power (Watts) | 2 W |
| Resistance (Ohms) | 2.2 kOhms |
| Resistive Material | Cermet |
| Rotation | 270 ° |
| Size - Body [diameter] | 0.75 in |
| Size - Body [diameter] | 19.05 mm |
| Taper | Linear |
| Temperature Coefficient | 0.75 % |
| Termination Style | PC Pins |
| Tolerance | 10 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 27.44 | |
| 50 | $ 18.30 | |||
| 100 | $ 17.72 | |||
Description
General part information
1625931 Series

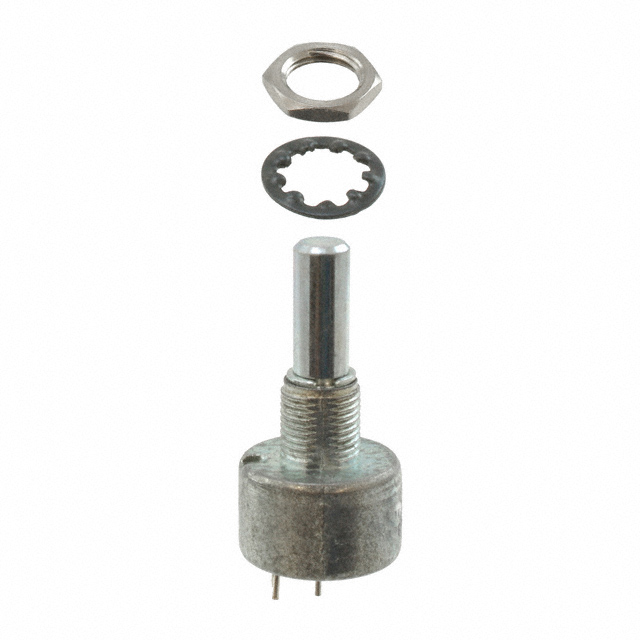

2.2k Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Cermet 2W PC Pins
Documents
Technical documentation and resources
