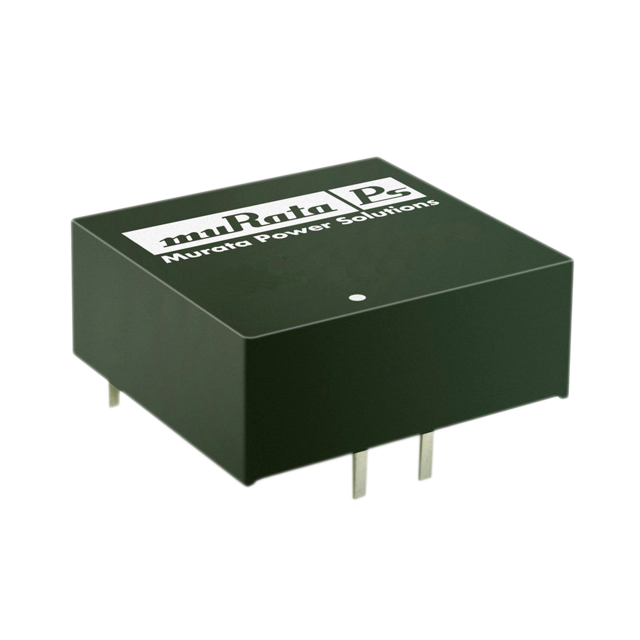

NMXD0512UC

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER +/-12V 5W

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER +/-12V 5W

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Mounting Type	Efficiency	Operating Temperature [Max]	Current - Output (Max)	Current - Output (Max)	Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Applications	Voltage - Input (Max) [Max]	Voltage - Output 1	Voltage - Isolation	Voltage - Output 2	Voltage - Input (Min) [Min]	Number of Outputs	Power (Watts)	Current - Output (Max)
Murata Power Solutions Inc. NMXD0512SOC	5-DIP Module	Through Hole	65 %	70 °C	235 mA	235 mA	Isolated Module	23.6 mm	9.9 mm	0.39 in	40.4 mm	0.93 in	1.59 in	ITE (Commercial)	5.5 V	12 V	1000 V	-12 V	4.5 V	2	5 W
Murata Power Solutions Inc. NMXD0512UC	5-DIP Module	Through Hole	75 %	70 °C	208 mA	208 mA	Isolated Module	23.6 mm	9.9 mm	0.39 in	25.1 mm	0.93 in	0.99 in	ITE (Commercial)	5.5 V	12 V	1000 V	-12 V	4.5 V	2	5 W
Murata Power Solutions Inc. NMXD0505UC	5-DIP Module	Through Hole	75 %	70 °C		500 mA	Isolated Module	23.6 mm	9.9 mm	0.39 in	25.1 mm	0.93 in	0.99 in	ITE (Commercial)	5.5 V	5 V	1000 V	-5 V	4.5 V	2	5 W	500 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 2 Output 12V -12V 208mA, 208mA 4.5V - 5.5V Input
