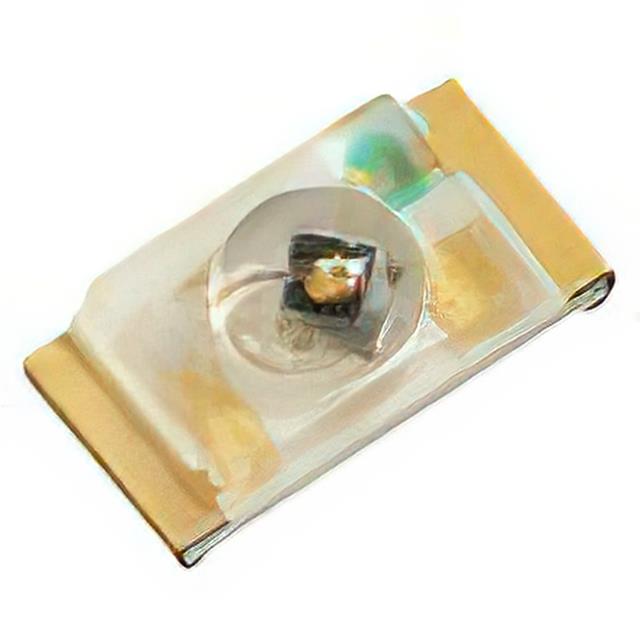

APHD1608F3C-P22

Active

Kingbright

1.6X0.8MM (0603) INFRARED SMD LE

Search across all available documentation for this part.

Active

Kingbright

1.6X0.8MM (0603) INFRARED SMD LE

Technical Specifications

Parameters and characteristics for this part

Specification	APHD1608F3C-P22

Current - DC Forward (If) (Max) [Max]	50 mA
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Top View
Package / Case	0603 (1608 Metric)
Radiant Intensity (Ie) Min @ If [Min]	0.8 mW/sr
Type	Infrared (IR)
Viewing Angle	100 °
Wavelength	940 nm

Part	Lens Color	Lens Style	Color	Configuration	Viewing Angle	Lens Size [diameter]	Size / Dimension [x]	Size / Dimension [y]	Current - Test	Package / Case	Mounting Type	Wavelength - Dominant	Supplier Device Package	Lens Transparency	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Wavelength - Peak	Current - DC Forward (If) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Wavelength	Radiant Intensity (Ie) Min @ If [Min]	Orientation	Type	Radiant Intensity (Ie) Min @ If
Kingbright APHD1608LCGCK	Colorless	Round with Domed Top	Green	Standard	100 °	0.7 mm	1.6 mm	0.8 mm	2 mA	0603 (1608 Metric)	Surface Mount	570 nm	1608	Clear	1.9 V	5 mcd
Kingbright APHD1608LSYCK	Colorless	Round with Domed Top	Yellow	Standard	100 °	0.7 mm	1.6 mm	0.8 mm	2 mA	0603 (1608 Metric)	Surface Mount	590 nm	1608	Clear	1.85 V	20 mcd	590 nm
Kingbright APHD1608LQBC/D	Colorless	Round with Domed Top	Blue	Standard	100 °	0.7 mm	1.6 mm	0.8 mm	2 mA	0603 (1608 Metric)	Surface Mount	465 nm	1608	Clear	2.65 V	25 mcd	460 nm
Kingbright APHD1608F3C-P22					100 °					0603 (1608 Metric)	Surface Mount							50 mA	85 °C	-40 °C	940 nm	0.8 mW/sr	Top View	Infrared (IR)
Kingbright APHD1608SF4CPRV-P22					100 °					0603 (1608 Metric)	Surface Mount				1.3 V			50 mA	85 °C	-40 °C	880 nm		Top View	Infrared (IR)	0.35 mW/sr
Kingbright APHD1608LZGCK	Colorless	Round with Domed Top	Green	Standard	100 °	0.7 mm	1.6 mm	0.8 mm	2 mA	0603 (1608 Metric)	Surface Mount	525 nm	1608	Clear	2.65 V	180 mcd	515 nm
Kingbright APHD1608LVBC/D	Colorless	Round with Domed Top	Blue	Standard	100 °	0.7 mm	1.6 mm	0.8 mm	2 mA	0603 (1608 Metric)	Surface Mount	470 nm	1608	Clear	2.65 V	45 mcd	465 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Infrared (IR) Emitter 940nm 1.2V 50mA 0.8mW/sr @ 20mA 100° 0603 (1608 Metric)
