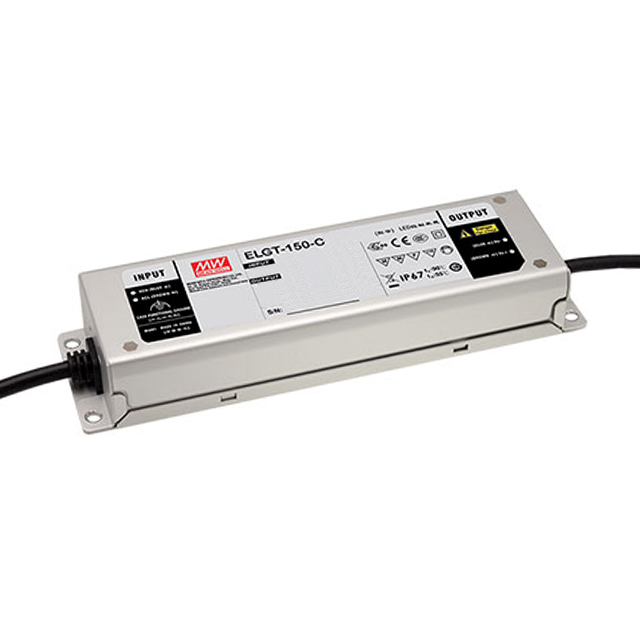

ELGT-150-C700

Obsolete

MEAN WELL USA Inc.

LED DRVR CC AC/DC 107-214V 700MA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ELGT-150-C700

Obsolete

MEAN WELL USA Inc.

LED DRVR CC AC/DC 107-214V 700MA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ELGT-150-C700

Approval Agency	CB, CCC, CE, ENEC
Current - Output (Max) [Max]	700 mA
Efficiency	92 %
Features	OTP, OVP, SCP
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	150 W
Ratings	IP67
Size / Dimension [x]	7.68 "
Size / Dimension [x]	195 mm
Size / Dimension [y]	63 mm
Size / Dimension [y]	2.48 in
Size / Dimension [z]	35.5 mm
Size / Dimension [z]	1.4 "
Termination Style	Wire Leads
Topology	AC DC Converter
Type	Constant Current
Voltage - Input (Max) [Max]	305 VAC
Voltage - Input (Min) [Min]	100 VAC
Voltage - Isolation	3750 V

ELGT-150 Series

Part	Termination Style	Current - Output (Max) [Max]	Ratings	Power (Watts)	Approval Agency	Topology	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Number of Outputs	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Output [Max]	Voltage - Output [Min]	Mounting Type	Type	Voltage - Isolation	Efficiency	Voltage - Input (Max) [Max]	Dimming
MEAN WELL USA Inc. ELGT-150-C1400A	Wire Leads	1.4 A	IP65	150 W	CB CCC CE ENEC	AC DC Converter	100 VAC	90 °C	-40 °C	OTP OVP SCP	1	7.68 "	63 mm	35.5 mm	1.4 "	2.48 in	195 mm	107 V	54 V	Chassis Mount	Constant Current	3750 V	91 %	305 VAC
MEAN WELL USA Inc. ELGT-150-C700B	Wire Leads	700 mA	IP67	150 W	CB CCC CE ENEC	AC DC Converter	100 VAC	90 °C	-40 °C	OTP OVP SCP	1	7.68 "	63 mm	35.5 mm	1.4 "	2.48 in	195 mm			Chassis Mount	Constant Current	3750 V	92 %	305 VAC	Analog PWM
MEAN WELL USA Inc. ELGT-150-C1050DA	Wire Leads	1.05 A	IP67	149 W	CB CCC CE EAC ENEC RCM	AC DC Converter	100 VAC	90 °C	-40 °C	OTP OVP SCP	1	7.68 "	63 mm	35.5 mm	1.4 "	2.48 in	195 mm	142 V	72 V	Chassis Mount	Constant Current	3750 V	92 %	305 VAC
MEAN WELL USA Inc. ELGT-150-C1050	Wire Leads	1.05 A	IP67	150 W	CB CCC CE ENEC	AC DC Converter	100 VAC	90 °C	-40 °C	OTP OVP SCP	1	7.68 "	63 mm	35.5 mm	1.4 "	2.48 in	195 mm	143 V	72 V	Chassis Mount	Constant Current	3750 V	92 %	305 VAC
MEAN WELL USA Inc. ELGT-150-C700D2
MEAN WELL USA Inc. ELGT-150-C1050D2
MEAN WELL USA Inc. ELGT-150-C1400DA
MEAN WELL USA Inc. ELGT-150-C700	Wire Leads	700 mA	IP67	150 W	CB CCC CE ENEC	AC DC Converter	100 VAC	90 °C	-40 °C	OTP OVP SCP	1	7.68 "	63 mm	35.5 mm	1.4 "	2.48 in	195 mm			Chassis Mount	Constant Current	3750 V	92 %	305 VAC
MEAN WELL USA Inc. ELGT-150-C1050B	Wire Leads	1.05 A	IP67	150 W	CB CCC CE ENEC	AC DC Converter	100 VAC	90 °C	-40 °C	OTP OVP SCP	1	7.68 "	63 mm	35.5 mm	1.4 "	2.48 in	195 mm	143 V	72 V	Chassis Mount	Constant Current	3750 V	92 %	305 VAC	Analog PWM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

ELGT-150 Series

700mA 107 ~ 214V Constant Current LED Driver AC DC Converter Topology 1 Output
