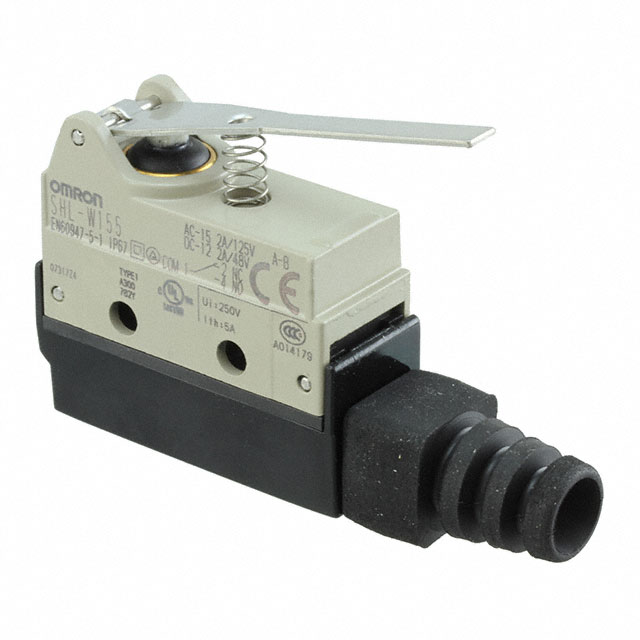

SHL-W55-01
ActiveOmron Electronics Inc-EMC Div
SWITCH SNAP ACT SPDT 0.1A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SHL-W55-01
ActiveOmron Electronics Inc-EMC Div
SWITCH SNAP ACT SPDT 0.1A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SHL-W55-01 |
|---|---|
| Actuator Type | Lever, Straight |
| Circuit | SPDT |
| Current Rating (Amps) | 100 mA |
| Differential Travel | 0.098 in |
| Differential Travel | 2.5 mm |
| Electrical Life | 500000 Cycles |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 10000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 320 gf |
| Operating Position | 0.846 in |
| Operating Position | 21.5 mm |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -10 °C |
| Overtravel | 3 mm |
| Overtravel | 0.118 in |
| Pretravel | 8 mm |
| Pretravel | 0.315 in |
| Release Force | 80 gf |
| Switch Function | On-Mom |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 91.93 | |
| 10 | $ 80.44 | |||
| 25 | $ 73.54 | |||
| 50 | $ 68.95 | |||
| 100 | $ 65.50 | |||
Description
General part information
SHL-W55 Series
Switch SPDT Chassis Mount
