430097-507
ActiveLaird Thermal Systems, Inc.

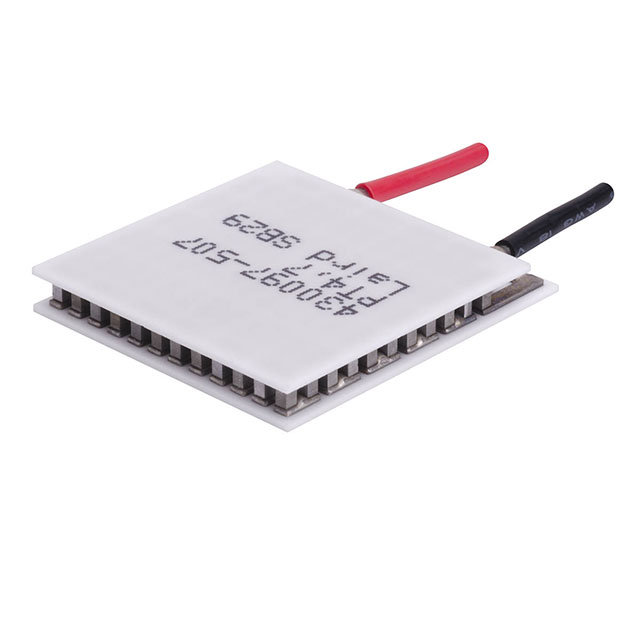

PELTIER MOD 34X30X4.14MM 3.8A
Deep-Dive with AI
Search across all available documentation for this part.
430097-507
ActiveLaird Thermal Systems, Inc.
PELTIER MOD 34X30X4.14MM 3.8A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 430097-507 |
|---|---|
| Current - Max [Max] | 3.8 A |
| Delta Tmax @ Th | 67 °C |
| Features | Lead Wires, Non-Sealed |
| Height [z] | 4.14 mm |
| Number of Stages | 1 |
| Operating Temperature | 80 °C |
| Qmax @ Th | 18.4 W |
| Resistance | 1.95 Ohms |
| Size / Dimension [x] | 34 mm |
| Size / Dimension [y] | 30 mm |
| Voltage - Max [Max] | 8.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
430097 Series
Peltier Module 18.4W @ 25°C 3.8 A 80°C
Documents
Technical documentation and resources
