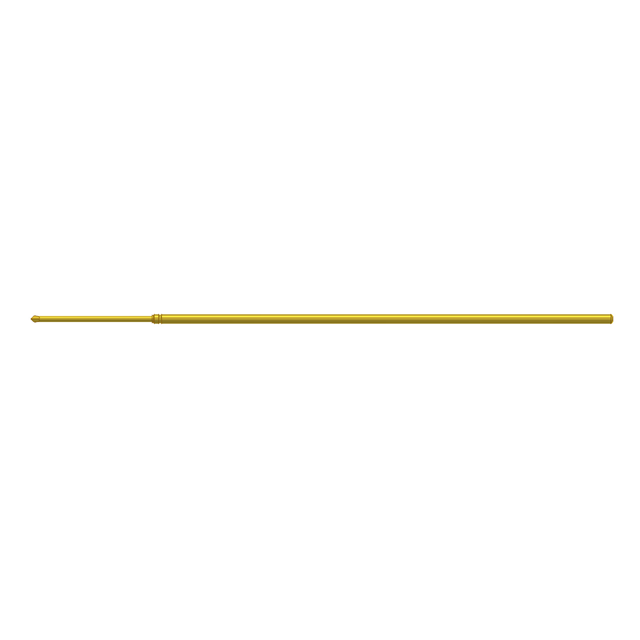

TOP039WN04/100G-L36.62

Active

Chip Shine / CSRF

39MIL ICT DOUBLE DAGGER TIP

Search across all available documentation for this part.

Active

Chip Shine / CSRF

39MIL ICT DOUBLE DAGGER TIP

Technical Specifications

Parameters and characteristics for this part

Specification	TOP039WN04/100G-L36.62

Current Rating (Amps)	3 A
Length - Overall [x]	33.27 mm
Length - Overall [x]	1.31 in
Length - Tip [x]	4.45 mm
Length - Tip [x]	0.175 in
Material - Body	Phosphor Copper, Gold Plated
Material - Tip	Beryllium Copper, Steel, Gold Plated
Tip Type	Spring Tip - Double Dagger Head
Tip Type [diameter]	0.4 mm
Tip Type [diameter]	0.016 in

Part	Tip Type [diameter]	Tip Type	Tip Type [diameter]	Length - Tip [x]	Length - Tip [x]	Current Rating (Amps)	Material - Tip	Material - Body	Length - Overall [x]	Length - Overall [x]
Chip Shine / CSRF TOP039WN04/100G-L36.62	0.4 mm	Spring Tip - Double Dagger Head	0.016 in	4.45 mm	0.175 in	3 A	Beryllium Copper Gold Plated Steel	Phosphor Copper Gold Plated	33.27 mm	1.31 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	100	$ 3.50

General part information

3 A Spring Tip - Double Dagger Head, 0.016" (0.40mm) Dia

Technical documentation and resources

No documents available
