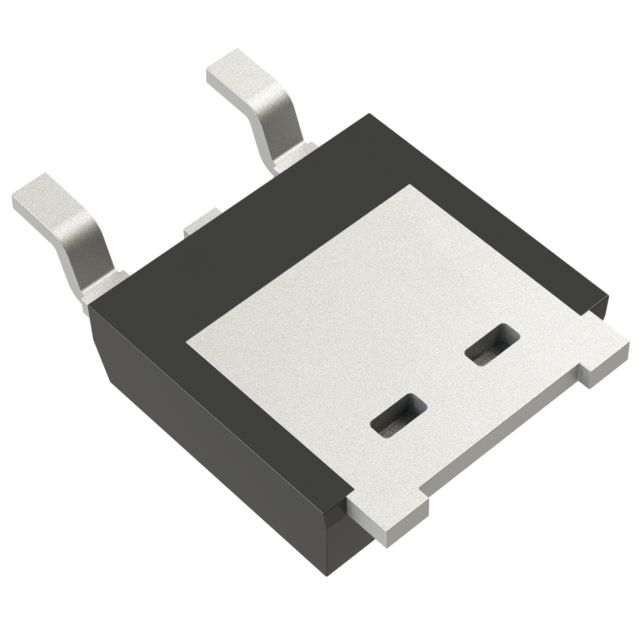

VS-10CVH01-M3/I

Active

Vishay General Semiconductor - Diodes Division

DIODE ARRAY GP 100V 5A SLIMDPAK

Search across all available documentation for this part.

Active

Vishay General Semiconductor - Diodes Division

DIODE ARRAY GP 100V 5A SLIMDPAK

Technical Specifications

Parameters and characteristics for this part

Specification	VS-10CVH01-M3/I

Current - Average Rectified (Io) (per Diode)	5 A
Current - Reverse Leakage @ Vr	4 µA
Diode Configuration	1 Pair Common Cathode
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-55 C
Package / Case	SC-63, DPAK (2 Leads + Tab), TO-252-3
Reverse Recovery Time (trr)	25 ns
Speed	200 mA, 500 ns
Supplier Device Package	SlimDPAK
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	100 V
Voltage - Forward (Vf) (Max) @ If	1.17 V

Part	Mounting Type	Current - Average Rectified (Io) (per Diode)	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Reverse Leakage @ Vr	Speed	Package / Case	Reverse Recovery Time (trr)	Supplier Device Package	Diode Configuration	Technology	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If
Vishay General Semiconductor - Diodes Division VS-10CVH01-M3/I	Surface Mount	5 A	175 ░C	-55 C	4 µA	200 mA 500 ns	DPAK (2 Leads + Tab) SC-63 TO-252-3	25 ns	SlimDPAK	1 Pair Common Cathode	Standard	100 V	1.17 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode Array 1 Pair Common Cathode 100 V 5A Surface Mount TO-252-3, DPAK (2 Leads + Tab), SC-63
