Technical Specifications
Parameters and characteristics for this part
| Specification | H3CKH-1636M |
|---|---|
| Cable Termination | IDC |
| Color | Ribbon, Multiple |
| Connector Type | Socket to Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Features | Polarizing Key |
| Length [x] | 3 ft |
| Length [x] | 914.4 mm |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Pitch - Cable | 0.05 " |
| Pitch - Cable | 1.27 mm |
| Pitch - Connector | 0.1 in |
| Pitch - Connector | 2.54 mm |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.98 | |
| 10 | $ 5.43 | |||
| 25 | $ 5.14 | |||
| 50 | $ 5.02 | |||
| 100 | $ 4.78 | |||
| 250 | $ 4.19 | |||
| 500 | $ 4.07 | |||
| 1000 | $ 3.47 | |||
| 2500 | $ 3.23 | |||
Description
General part information
H3CKH-16 Series

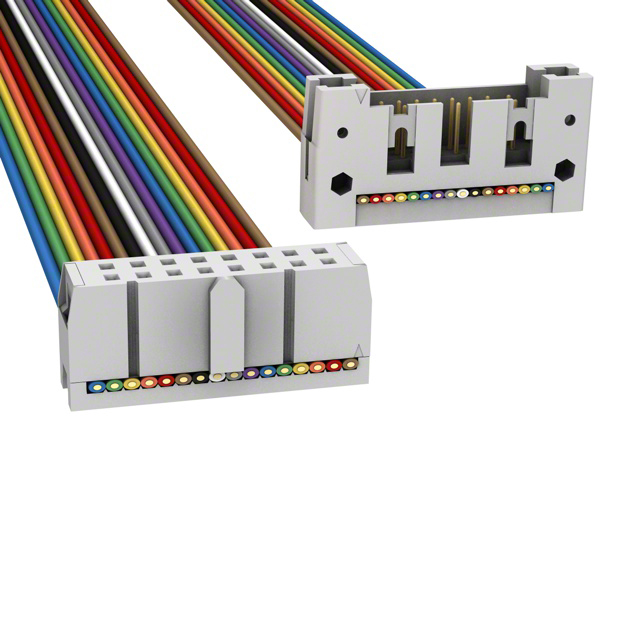

16 Position Cable Assembly Rectangular Socket to Plug 3.00' (914.40mm)
