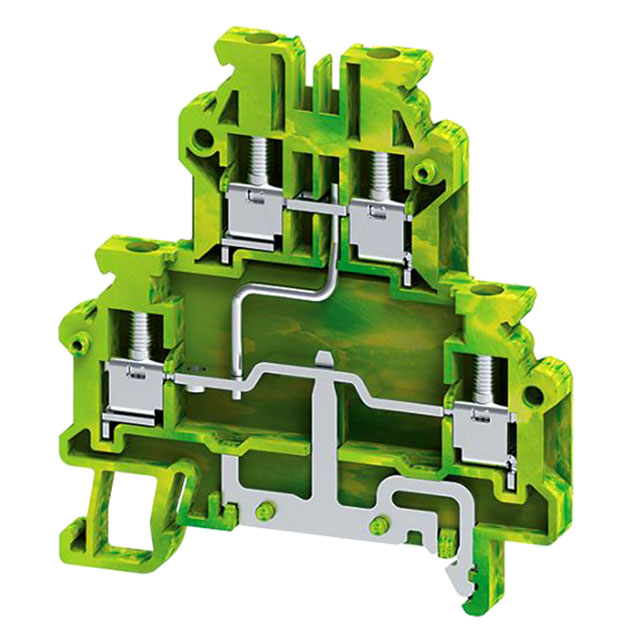

ODLG2.5(I.S)
ActiveAltech Corporation
DIN TERM SCREW 2 LEVEL OFFSET 25
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ODLG2.5(I.S) |
|---|---|
| Color | Green |
| Material - Insulation | Polyamide (PA66), Nylon 6/6 |
| Number of Levels | Connected and Grounded |
| Number of Levels | 2 |
| Number of Positions | 4 |
| Stripping Length | 8 mm |
| Terminal - Width | 5 mm |
| Termination Style | Screw |
| Type | Feed Through |
| Voltage - IEC | 800 V |
| Voltage - UL [custom] | 300 V |
| Wire Gauge or Range - AWG [Max] | 24 AWG |
| Wire Gauge or Range - AWG [Min] | 12 AWG |
| Wire Gauge or Range - mm˛ [Max] | 2.5 mm˛ |
| Wire Gauge or Range - mm˛ [Min] | 0.2 mm˛ |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 50 | $ 7.90 | |
Description
General part information
ODLG2.5 Series
Terminal Block Connector 4 Position Feed Through Green 12-24 AWG
