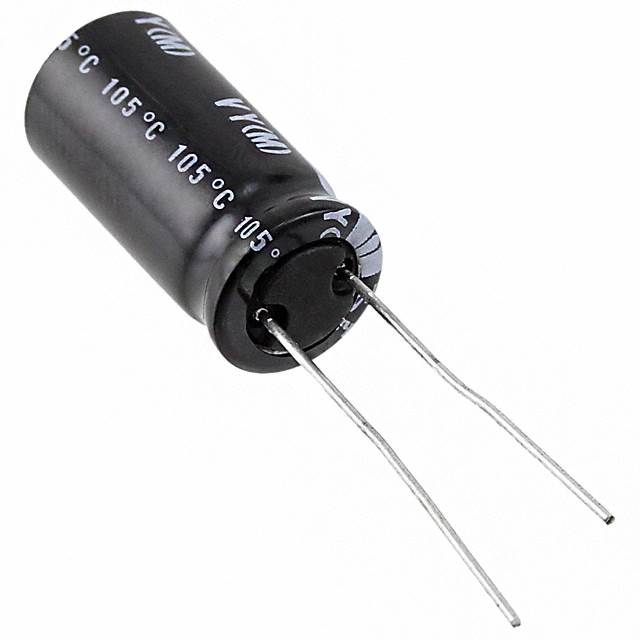

UVY0J332MPD

Active

NICHICON

ELECTROLYTIC CAPACITOR, 3300 ΜF, 6.3 V, ± 20%, PC PIN, 1000 HOURS @ 105°C, POLAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMiniature Type Taping Spec Datasheet

UVY0J332MPD

Active

NICHICON

ELECTROLYTIC CAPACITOR, 3300 ΜF, 6.3 V, ± 20%, PC PIN, 1000 HOURS @ 105°C, POLAR

Deep-Dive with AI

DocumentsMiniature Type Taping Spec Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UVY0J332MPD

Applications	General Purpose
Capacitance	3.3 mF
Height - Seated (Max) [Max] [z]	22 mm
Height - Seated (Max) [Max] [z]	0.866 in
Lead Spacing	5 mm
Lead Spacing	0.197 in
Lifetime @ Temp.	2000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ Low Frequency	840 mA
Size / Dimension [diameter]	10 mm
Size / Dimension [diameter]	0.394 in
Tolerance	20 %
Voltage - Rated	6.3 V

UVY0J Series

Part	Voltage - Rated	Lead Spacing	Lead Spacing	Polarization	Size / Dimension [diameter]	Size / Dimension [diameter]	Tolerance	Ripple Current @ High Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Lifetime @ Temp.	Package / Case	Ripple Current @ Low Frequency	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
NICHICON UVY0J153MHD	6.3 V	7.5 mm	0.295 in	Polar	0.63 in	16 mm	20 %	2.093 A	1.28 in	32.5 mm	Through Hole	105 ░C	-55 °C	General Purpose	2000 Hrs	Radial Can	1.82 A
NICHICON UVY0J103MHD	6.3 V	7.5 mm	0.295 in	Polar	0.63 in	16 mm	20 %	1.8975 A	1.063 in	27 mm	Through Hole	105 ░C	-55 °C	General Purpose	2000 Hrs	Radial Can	1.65 A	10000 µF
NICHICON UVY0J682MHD1TO	6.3 V	5 mm	0.197 in	Polar	0.492 in	12.5 mm	20 %	1.5525 A	1.063 in	27 mm	Through Hole	105 ░C	-55 °C	General Purpose	2000 Hrs	Radial Can	1.35 A	6800 µF
NICHICON UVY0J473MRD	6.3 V	10 mm	0.394 in	Polar	0.866 in	22 mm	20 %	3.197 A	2.047 in	52 mm	Through Hole	105 ░C	-55 °C	General Purpose	2000 Hrs	Radial Can	2.78 A	47 mF
NICHICON UVY0J102MPD1TA	6.3 V	3.5 mm	0.138 in	Polar	0.315 "	8 mm	20 %	448.5 mA	0.512 "	13 mm	Through Hole	105 ░C	-55 °C	General Purpose	1000 Hrs	Radial Can	390 mA	1000 µF
NICHICON UVY0J222MPD	6.3 V	5 mm	0.197 in	Polar	0.394 in	10 mm	20 %	730.25 mA			Through Hole	105 ░C	-55 °C	General Purpose	2000 Hrs	Radial Can	635 mA	2200 µF	0.689 in	17.5 mm
NICHICON UVY0J102MPD1TD	6.3 V	3.5 mm	0.138 in	Polar	0.315 "	8 mm	20 %	448.5 mA	0.512 "	13 mm	Through Hole	105 ░C	-55 °C	General Purpose	1000 Hrs	Radial Can	390 mA	1000 µF
NICHICON UVY0J332MPD	6.3 V	5 mm	0.197 in	Polar	0.394 in	10 mm	20 %		0.866 in	22 mm	Through Hole	105 ░C	-55 °C	General Purpose	2000 Hrs	Radial Can	840 mA	3.3 mF

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.87
		10	$ 0.54
		50	$ 0.40
		100	$ 0.36
		500	$ 0.28
		1000	$ 0.26
		2500	$ 0.24
		5000	$ 0.22
Newark	Each	1000	$ 0.22
		2500	$ 0.20
TME	N/A	5	$ 0.48
		100	$ 0.36
		200	$ 0.30
		800	$ 0.29

Description

General part information

UVY0J Series

3300 µF 6.3 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C

Documents

Technical documentation and resources

Miniature Type Taping Spec

Datasheet
