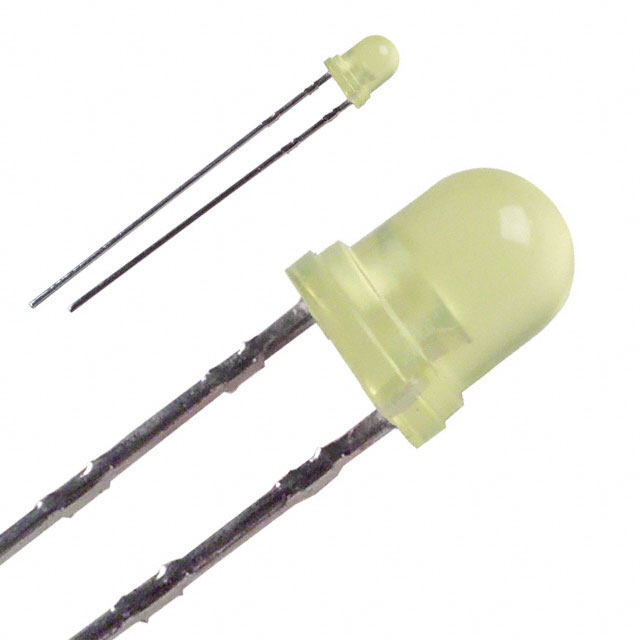

SLR-332YYT32

Active

Rohm Semiconductor

LED YELLOW DIFFUSED T-1 T/H

Search across all available documentation for this part.

Active

Rohm Semiconductor

LED YELLOW DIFFUSED T-1 T/H

Technical Specifications

Parameters and characteristics for this part

Circular LED lamp

Part	Viewing Angle	Color	Voltage - Forward (Vf) (Typ)	Lens Transparency	Wavelength - Peak	Lens Style	Height (Max) [Max]	Package / Case	Current - Test	Mounting Type	Lens Size [diameter]	Lens Color	Millicandela Rating	Configuration	Wavelength - Dominant	Supplier Device Package
Rohm Semiconductor SLR-332MGT32	75 °	Green	2.1 V	Diffused	563 nm	Round with Domed Top	4.6 mm	Radial	10 mA	Through Hole	3.2 mm	Green	16 mcd	Standard
Rohm Semiconductor SLR-332VRT32	85 °	Red	2 V	Diffused		Round with Domed Top	4.6 mm	Radial	10 mA	Through Hole	3.2 mm	Red	10 mcd	Standard	630 nm	T-1
Rohm Semiconductor SLR-332VR3F	85 °	Red	2 V	Diffused		Round with Domed Top	4.6 mm	Radial	10 mA	Through Hole	3.2 mm	Red	10 mcd	Standard	630 nm	T-1
Rohm Semiconductor SLR-332DU3F	85 °		2 V	Diffused		Round with Domed Top	4.6 mm	Radial	10 mA	Through Hole	3.2 mm	Orange	10 mcd	Standard	605 nm	T-1
Rohm Semiconductor SLR-332YCT32	85 °	Yellow	2.1 V	Clear		Round with Domed Top	4.6 mm	Radial	10 mA	Through Hole	3.2 mm	Yellow	10 mcd	Standard	587 nm	T-1
Rohm Semiconductor SLR-332VC3F	85 °	Red	2 V	Clear		Round with Domed Top	4.6 mm	Radial	10 mA	Through Hole	3.2 mm	Red	10 mcd	Standard	630 nm	T-1
Rohm Semiconductor SLR-332MC3F	85 °	Green	2.1 V	Clear		Round with Domed Top	4.6 mm	Radial	10 mA	Through Hole	3.2 mm	Green	16 mcd	Standard	572 nm	T-1
Rohm Semiconductor SLR-332YYT32	85 °	Yellow	2.1 V	Diffused		Round with Domed Top	4.6 mm	Radial	10 mA	Through Hole	3.2 mm	Yellow	6.3 mcd	Standard	587 nm	T-1
Rohm Semiconductor SLR-332YC3F	85 °	Yellow	2.1 V	Clear		Round with Domed Top	4.6 mm	Radial	10 mA	Through Hole	3.2 mm	Yellow	10 mcd	Standard	587 nm	T-1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

ROHM's lamp LED lineup covers various types including high-brightness/high-reliability LED lamps suitable outdoor displays.

Technical documentation and resources
