RG-400-1

Active

Remington Industries

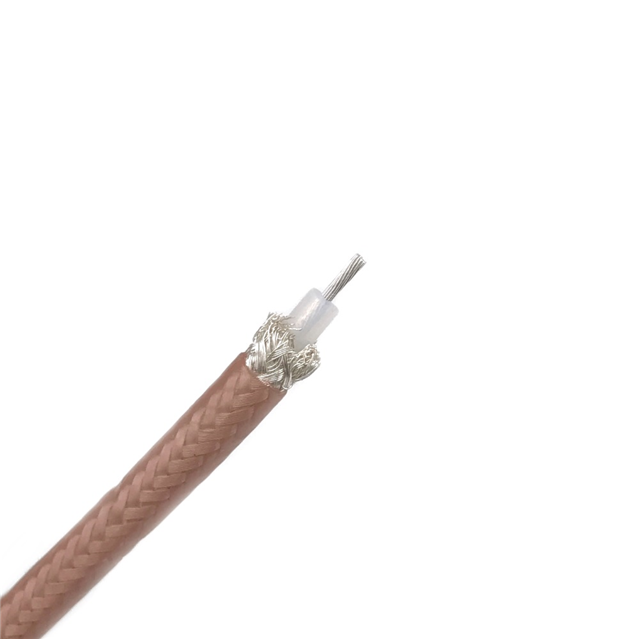

RG-400/U COAX CABLE 1' LENGTH

Search across all available documentation for this part.

Active

Remington Industries

RG-400/U COAX CABLE 1' LENGTH

Technical Specifications

Parameters and characteristics for this part

Specification	RG-400-1

Cable Group	RG-400
Cable Type	Coaxial
Conductor Material	Copper, Silver Coated
Conductor Strand [custom]	19 Strands
Conductor Strand [diameter]	0.008 in
Dielectric Diameter [diameter]	2.95 mm
Dielectric Diameter [diameter]	0.116 in
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Direct Burial
Impedance	50 Ohms
Jacket (Insulation) Diameter [diameter]	0.195 in
Jacket (Insulation) Diameter [diameter]	4.95 mm
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP)
Jacket Color	Tan
Length [x]	1 ft
Length [x]	300 mm
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Shield Material	Copper, Silver Coated
Shield Type	Double Braid
Usage	Network, RF Signal

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Usage	Cable Group	Jacket (Insulation) Material	Dielectric Material	Impedance	Conductor Material	Jacket Color	Shield Material	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Features	Conductor Strand [custom]	Conductor Strand [diameter]	Length [x]	Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Shield Type	Length	Length
Remington Industries RG-400-4	0.195 in	4.95 mm	Network RF Signal	RG-400	Fluorinated Ethylene-Propylene (FEP)	Polytetrafluoroethylene (PTFE)	50 Ohms	Copper Silver Coated	Tan	Copper Silver Coated	2.95 mm	0.116 in	Direct Burial	19 Strands	0.008 in	1.22 m	4 ft	-55 °C	200 °C	Coaxial	Double Braid
Remington Industries RG-400-25	0.195 in	4.95 mm	Network RF Signal	RG-400	Fluorinated Ethylene-Propylene (FEP)	Polytetrafluoroethylene (PTFE)	50 Ohms	Copper Silver Coated	Tan	Copper Silver Coated	2.95 mm	0.116 in	Direct Burial	19 Strands	0.008 in			-55 °C	200 °C	Coaxial	Double Braid	25 ft	7.62 m
Remington Industries RG-400-1	0.195 in	4.95 mm	Network RF Signal	RG-400	Fluorinated Ethylene-Propylene (FEP)	Polytetrafluoroethylene (PTFE)	50 Ohms	Copper Silver Coated	Tan	Copper Silver Coated	2.95 mm	0.116 in	Direct Burial	19 Strands	0.008 in	300 mm	1 ft	-55 °C	200 °C	Coaxial	Double Braid

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 23.46

General part information

Coaxial Cable RG-400 1.0' (0.30m) 50 Ohms
