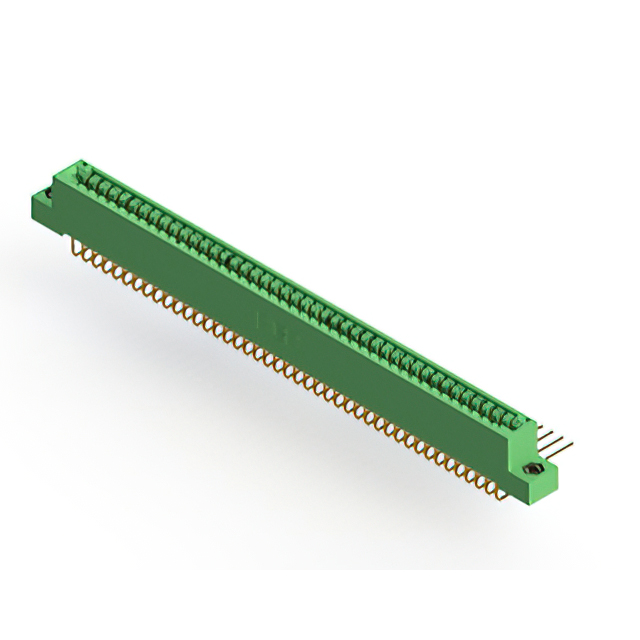

846-086-559-208
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 86POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
846-086-559-208
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 86POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 846-086-559-208 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 86 |
| Number of Positions/Bay/Row [custom] | 43 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
846-086 Series
...
| Part | Number of Rows | Pitch [x] | Pitch [x] | Material - Insulation | Number of Positions | Contact Finish | Mounting Type | Card Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions/Bay/Row [custom] | Termination | Color | Contact Type | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Termination Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Gender | Read Out | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2 | 0.125 in | 3.18 mm | Diallyl Phthalate (DAP) | 86 | Gold | Through Hole | Non Specified - Dual Edge | 125 °C | -40 °C | 43 | Solder Eyelet(s) | Green | Cantilever | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Dual | 10 Áin | 0.25 Ám | Copper Alloy | |
EDAC Inc. | 2 | 0.125 in | 3.18 mm | Diallyl Phthalate (DAP) | 86 | Gold | Through Hole | Non Specified - Dual Edge | 125 °C | -40 °C | 43 | Solder | Green | Cantilever | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Dual | 10 Áin | 0.25 Ám | Copper Alloy | |
EDAC Inc. | 2 | 0.125 in | 3.18 mm | Diallyl Phthalate (DAP) | 86 | Gold | Through Hole Right Angle | Non Specified - Dual Edge | 125 °C | -40 °C | 43 | Solder | Green | Cantilever | Flush Mount M3 Threaded Insert Top Opening | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Dual | 10 Áin | 0.25 Ám | Copper Alloy | |||
EDAC Inc. | 2 | 0.125 in | 3.18 mm | Diallyl Phthalate (DAP) | 86 | Gold | Through Hole | Non Specified - Dual Edge | 125 °C | -40 °C | 43 | Solder Eyelet(s) | Green | Cantilever | Flush Mount M3 Threaded Insert Top Opening | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Dual | 10 Áin | 0.25 Ám | Copper Alloy | |||
EDAC Inc. | 2 | 0.125 in | 3.18 mm | Diallyl Phthalate (DAP) | 86 | Gold | Board Edge Straddle Mount | Non Specified - Dual Edge | 125 °C | -40 °C | 43 | Solder | Green | Cantilever | 0.128 " | Flush Mount Side Opening Unthreaded | 3.25 mm | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Dual | 10 Áin | 0.25 Ám | Copper Alloy | Card Extender |
EDAC Inc. | 2 | 0.125 in | 3.18 mm | Diallyl Phthalate (DAP) | 86 | Gold | Through Hole | Non Specified - Dual Edge | 125 °C | -40 °C | 43 | Solder | Green | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Dual | 10 Áin | 0.25 Ám | Copper Alloy | |||
EDAC Inc. | 2 | 0.125 in | 3.18 mm | Diallyl Phthalate (DAP) | 86 | Gold | Through Hole Right Angle | Non Specified - Dual Edge | 125 °C | -40 °C | 43 | Solder | Green | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Dual | 10 Áin | 0.25 Ám | Copper Alloy | |||
EDAC Inc. | 2 | 0.125 in | 3.18 mm | Diallyl Phthalate (DAP) | 86 | Gold | Through Hole Right Angle | Non Specified - Dual Edge | 125 °C | -40 °C | 43 | Solder | Green | Cantilever | 0.156 in | Top Mount Opening Unthreaded | 3.96 mm | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Dual | 10 Áin | 0.25 Ám | Copper Alloy | |
EDAC Inc. | 2 | 0.125 in | 3.18 mm | Diallyl Phthalate (DAP) | 86 | Gold | Board Edge Straddle Mount | Non Specified - Dual Edge | 125 °C | -40 °C | 43 | Solder | Green | Cantilever | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Dual | 10 Áin | 0.25 Ám | Copper Alloy | Card Extender |
EDAC Inc. | 2 | 0.125 in | 3.18 mm | Diallyl Phthalate (DAP) | 86 | Gold | Through Hole | Non Specified - Dual Edge | 125 °C | -40 °C | 43 | Solder | Green | Cantilever | M3 Threaded Insert Top Mount Opening | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | Dual | 10 Áin | 0.25 Ám | Copper Alloy |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
846-086 Series
86 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Green
