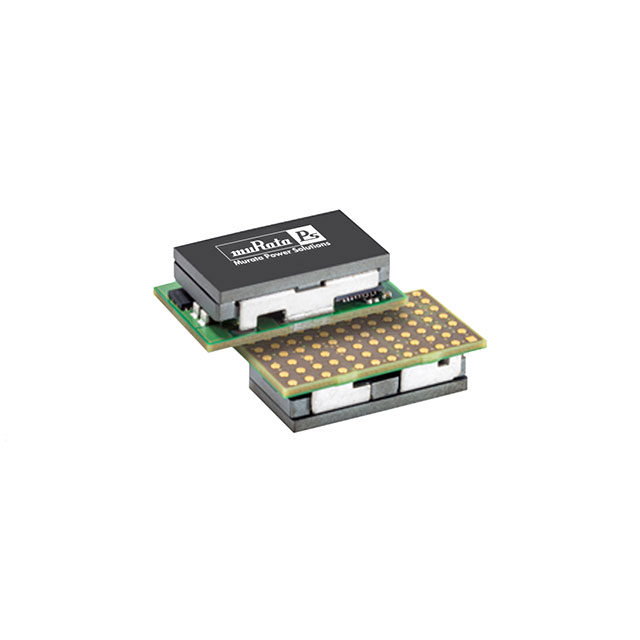

OKDL-T/60-W12-001-C

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER 0.6-1.8V

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

DC DC CONVERTER 0.6-1.8V

Technical Specifications

Parameters and characteristics for this part

Specification	OKDL-T/60-W12-001-C

Applications	ITE (Commercial)
Control Features	Active High, Enable
Current - Output (Max) [Max]	60 A
Efficiency	92 %
Features	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Size / Dimension [x]	0.99 in
Size / Dimension [x]	25.1 mm
Size / Dimension [y]	14.1 mm
Size / Dimension [y]	0.56 in
Size / Dimension [z]	7 mm
Size / Dimension [z]	0.28 "
Type	Non-Isolated PoL Module, Digital
Voltage - Input (Max) [Max]	14 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Output 1 [Max]	1.8 V
Voltage - Output 1 [Min]	0.6 V

Part	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Number of Outputs	Features	Applications	Current - Output (Max) [Max]	Efficiency	Voltage - Input (Max) [Max]	Control Features	Operating Temperature [Min]	Operating Temperature [Max]	Type	Mounting Type	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Input (Min) [Min]	Package / Case
Murata Power Solutions Inc. OKDL-T/12-W12-001-C	5 V	0.6 V	1	OCP OTP OVP Remote On/Off UVLO	ITE (Commercial)	12 A	95.8 %	14 V	Active High Enable	-40 °C	120 °C	Non-Isolated PoL Module Digital	Surface Mount	8 mm	0.32 "	12.2 mm	0.48 in	0.48 in	12.2 mm	4.5 V	32-BLGA Module
Murata Power Solutions Inc. OKDL-T/18-W12-001-C	1.8 V	0.6 V	1	OCP OTP OVP Remote On/Off UVLO	ITE (Commercial)	18 A	90.5 %	14 V	Active High Enable	-40 °C	120 °C	Non-Isolated PoL Module Digital	Surface Mount	8 mm	0.32 "	12.2 mm	0.48 in	0.48 in	12.2 mm	4.5 V	32-BLGA Module
Murata Power Solutions Inc. OKDL-T/60-W12-001-C	1.8 V	0.6 V	1	OCP OTP OVP Remote On/Off SCP UVLO	ITE (Commercial)	60 A	92 %	14 V	Active High Enable	-40 °C	150 °C	Non-Isolated PoL Module Digital	Surface Mount	7 mm	0.28 "	25.1 mm	0.56 in	0.99 in	14.1 mm	4.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Non-Isolated PoL Module, Digital DC DC Converter 1 Output 0.6 ~ 1.8V 60A 4.5V - 14V Input
