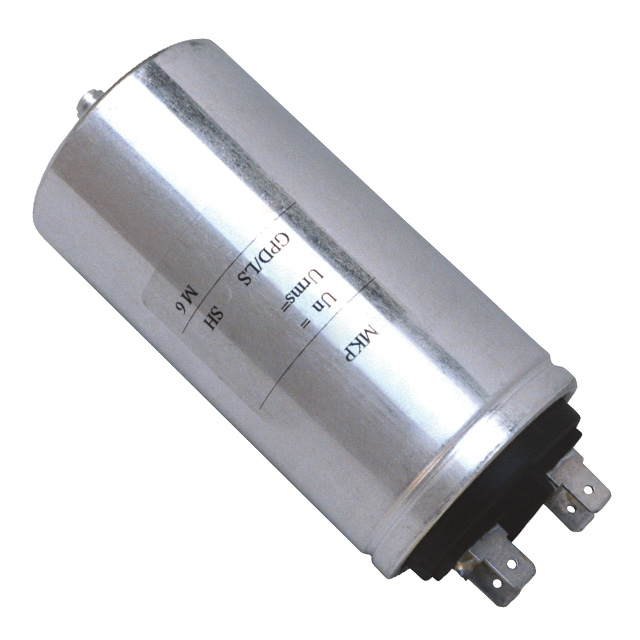

C44AJFP5200ZD0J

Active

KEMET

CAP FILM 20UF 5% 700VDC RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP FILM 20UF 5% 700VDC RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	C44AJFP5200ZD0J

Applications	General Purpose
Capacitance	20 µF
Dielectric Material	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	3 mOhm
Height - Seated (Max) [Max] [z]	4.055 in
Height - Seated (Max) [Max] [z]	103 mm
Lead Spacing	22.3 mm
Lead Spacing	0.878 in
Mounting Type	Chassis, Stud Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Size / Dimension [diameter]	1.969 in
Size / Dimension [diameter]	50 mm
Termination	Threaded, Male
Tolerance	5 %
Voltage Rating - AC	400 V
Voltage Rating - DC	700 VDC

Part	Dielectric Material	Package / Case	Voltage Rating - AC	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Termination	Applications	Mounting Type	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Capacitance	Size / Dimension [diameter]	Size / Dimension [diameter]	Lead Spacing	Lead Spacing	Voltage Rating - DC
KEMET C44AJFP4500ZA0J	Metallized Polypropylene (PP)	Radial Can	400 V	3 mOhm	82 mm	3.228 in	Threaded Male	General Purpose	Chassis Stud Mount	5 %	85 °C	-40 °C	5 µF	45 mm	1.772 in	22.3 mm	0.878 in	700 VDC
KEMET C44AJFP5200ZD0J	Metallized Polypropylene (PP)	Radial Can	400 V	3 mOhm	103 mm	4.055 in	Threaded Male	General Purpose	Chassis Stud Mount	5 %	85 °C	-40 °C	20 µF	50 mm	1.969 in	22.3 mm	0.878 in	700 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 µF Film Capacitor 400V 700V Polypropylene (PP), Metallized Radial, Can
