PX0728/P
ActiveBULGIN LIMITED

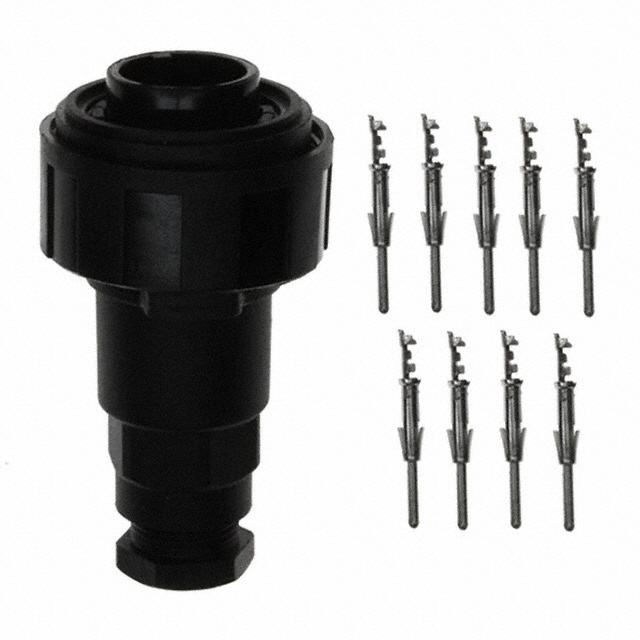

CIRCULAR CONNECTOR, BUCCANEER STANDARD SERIES, CABLE MOUNT PLUG, 9 CONTACTS, CRIMP PIN
Deep-Dive with AI
Search across all available documentation for this part.
PX0728/P
ActiveBULGIN LIMITED
CIRCULAR CONNECTOR, BUCCANEER STANDARD SERIES, CABLE MOUNT PLUG, 9 CONTACTS, CRIMP PIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PX0728/P |
|---|---|
| Backshell Material, Plating | Nylon, Polyamide (PA), Glass Filled |
| Cable Opening [Max] [custom] | 8 mm |
| Cable Opening [Max] [custom] | 0.315 in |
| Cable Opening [Min] [custom] | 6 mm |
| Cable Opening [Min] [custom] | 0.236 in |
| Color | Black |
| Connector Type | Plug, Male Pins |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 5 A |
| Features | Coupling Nut, Backshell |
| Ingress Protection | IP68, IP69K |
| Insert Material | Nylon, Polyamide (PA) |
| Material Flammability Rating | UL94 HB |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 9 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Nylon, Glass Filled, Polyamide (PA) |
| Shielding | Unshielded |
| Termination | Crimp |
| Voltage Rating | 150 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 21.88 | |
| 10 | $ 19.16 | |||
| 25 | $ 18.33 | |||
| 50 | $ 17.74 | |||
| 100 | $ 17.15 | |||
| 250 | $ 16.20 | |||
| 500 | $ 15.73 | |||
Description
General part information
PX0728 Series
9 (Power) Position Circular Connector Plug, Male Pins Crimp
