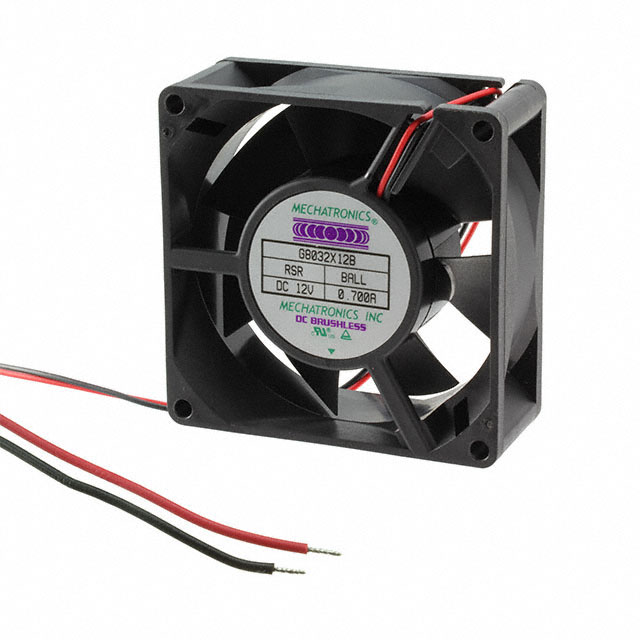

G8032X12B-RSR

Active

Mechatronics Bearing Group

FAN AXIAL 80X32MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDC Fan, Blower Lead Wire Spec Datasheet +2

G8032X12B-RSR

Active

Mechatronics Bearing Group

FAN AXIAL 80X32MM 12VDC WIRE

Deep-Dive with AI

DocumentsDC Fan, Blower Lead Wire Spec Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	G8032X12B-RSR

Approval Agency	CE, cUL, TUV, UL
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Thermal Overload Protector (TOP)
Material - Blade	Polybutylene Terephthalate (PBT)
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Weight	129.73 g
Weight	0.286 lb
Width [y]	32 mm

G8032 Series

Part	Bearing Type	Ingress Protection	Features	Material - Blade	Termination	Current Rating (Amps)	Approval Agency	Weight	Weight	Fan Type	RPM	Air Flow	Air Flow	Width [y]	Size / Dimension [y]	Size / Dimension [x]	Noise	Static Pressure	Static Pressure	Voltage - Rated
Mechatronics Bearing Group G8032M24B-RSR-EM	Ball	IP57 - Dust Protected Waterproof	Thermal Overload Protector (TOP)	Polybutylene Terephthalate (PBT)	2 Wire Leads	0.2 A	CE cUL TUV UL	129.73 g	0.286 lb	Tubeaxial	3500 RPM	1.15 mł/min	41 CFM	32 mm	80 mm	80 mm	38 dB(A)	72.2 Pa	0.29 in H2O	24 VDC
Mechatronics Bearing Group G8032X12B-RSR	Ball		Thermal Overload Protector (TOP)	Polybutylene Terephthalate (PBT)	2 Wire Leads		CE cUL TUV UL	129.73 g	0.286 lb	Tubeaxial				32 mm	80 mm	80 mm				12 VDC
Mechatronics Bearing Group G8032X24B-RSR-EM	Ball	IP57 - Dust Protected Waterproof	Thermal Overload Protector (TOP)	Polybutylene Terephthalate (PBT)	2 Wire Leads		CE cUL TUV UL	129.73 g	0.286 lb	Tubeaxial				32 mm	80 mm	80 mm				24 VDC
Mechatronics Bearing Group G8032M12B-RSR-EM3	Ball		Thermal Overload Protector (TOP)	Polybutylene Terephthalate (PBT)	2 Wire Leads	0.26 A	CE cUL TUV UL	129.73 g	0.286 lb	Tubeaxial	3500 RPM	1.15 mł/min	41 CFM	32 mm	80 mm	80 mm	38 dB(A)	72.2 Pa	0.29 in H2O	12 VDC
Mechatronics Bearing Group G8032E24B-RS	Ball		Thermal Overload Protector (TOP)	Polybutylene Terephthalate (PBT)	2 Wire Leads	0.33 A	CE cUL TUV UL	129.73 g	0.286 lb	Tubeaxial	4500 RPM	1.46 mł/min	52 CFM	32 mm	80 mm	80 mm	46 dB(A)	109.6 Pa	0.44 in H2O	24 VDC
Mechatronics Bearing Group G8032X12B1-RSR	Ball		Speed Sensor (Tach) Thermal Overload Protector (TOP)	Polybutylene Terephthalate (PBT)	3 Wire Leads		CE cUL TUV UL	129.73 g	0.286 lb	Tubeaxial				32 mm	80 mm	80 mm				12 VDC
Mechatronics Bearing Group G8032H24B-RSR	Ball		Thermal Overload Protector (TOP)	Polybutylene Terephthalate (PBT)	2 Wire Leads	0.25 A	CE cUL TUV UL	129.73 g	0.286 lb	Tubeaxial	4000 RPM	1.34 m³/min	48 CFM	32 mm	80 mm	80 mm	42 dB	92.2 Pa	0.37 in H2O	24 VDC
Mechatronics Bearing Group G8032H12B1-RSR	Ball		Speed Sensor (Tach) Thermal Overload Protector (TOP)	Polybutylene Terephthalate (PBT)	3 Wire Leads	450 mA	CE cUL TUV UL	129.73 g	0.286 lb	Tubeaxial	4000 RPM	1.34 m³/min	48 CFM	32 mm	80 mm	80 mm	42 dB	92.2 Pa	0.37 in H2O	12 VDC
Mechatronics Bearing Group G8032M24B1-RSR	Ball		Speed Sensor (Tach) Thermal Overload Protector (TOP)	Polybutylene Terephthalate (PBT)	3 Wire Leads	0.2 A	CE cUL TUV UL	129.73 g	0.286 lb	Tubeaxial	3500 RPM	1.15 mł/min	41 CFM	32 mm	80 mm	80 mm	38 dB(A)	72.2 Pa	0.29 in H2O	24 VDC
Mechatronics Bearing Group G8032E24B-RSR	Ball		Thermal Overload Protector (TOP)	Polybutylene Terephthalate (PBT)	2 Wire Leads	0.33 A	CE cUL TUV UL	129.73 g	0.286 lb	Tubeaxial	4500 RPM	1.46 mł/min	52 CFM	32 mm	80 mm	80 mm	46 dB(A)	109.6 Pa	0.44 in H2O	24 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.16
		10	$ 13.52
		25	$ 12.71
		60	$ 12.23
		120	$ 11.26
		300	$ 10.54
		540	$ 10.38

Description

General part information

G8032 Series

Fan Tubeaxial 12VDC Square - 80mm L x 80mm H Ball 2 Wire Leads

Documents

Technical documentation and resources

DC Fan, Blower Lead Wire Spec

Datasheet

DC Lead Wire Specs

AC/DC Fans & Blowers Catalog

Datasheet
