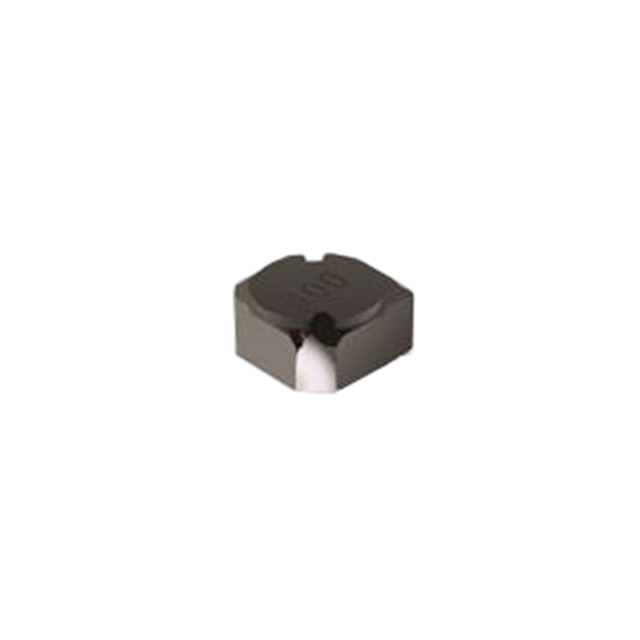

SRR4528A-1R8Y

Active

Bourns Inc.

IND,5X5X2.8MM,1.8UH,30%,4.2A,SHD,SMD /TAPE & REEL - 7" REEL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Datasheet

SRR4528A-1R8Y

Active

Bourns Inc.

IND,5X5X2.8MM,1.8UH,30%,4.2A,SHD,SMD /TAPE & REEL - 7" REEL

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SRR4528A-1R8Y

Current - Saturation (Isat)	2.5 A
Current Rating (Amps)	4.2 A
DC Resistance (DCR)	20 mOhm
Frequency - Self Resonant	78 MHz
Inductance	1.8 µH
Inductance Frequency - Test	100 kHz
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Ratings	AEC-Q200
Shielding	Shielded
Size / Dimension [x]	0.197 in
Size / Dimension [x]	5 mm
Size / Dimension [y]	5 mm
Size / Dimension [y]	0.197 "
Tolerance	30 %

SRR4528A Series

Part	Current Rating (Amps)	Tolerance	Material - Core	Shielding	Mounting Type	Ratings	DC Resistance (DCR) [Max]	Frequency - Self Resonant	Operating Temperature [Max]	Operating Temperature [Min]	Inductance	Inductance Frequency - Test	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Current - Saturation (Isat)	DC Resistance (DCR)
Bourns Inc. SRR4528A-8R2Y	2.12 A	30 %	Ferrite	Shielded	Surface Mount	AEC-Q200	70 mOhm	38 MHz	125 °C	-40 °C	8.2 µH	100 kHz	0.197 in	5 mm	0.197 "	5 mm	1.22 A
Bourns Inc. SRR4528A-820M	590 mA	20 %	Ferrite	Shielded	Surface Mount	AEC-Q200	552 mOhm	11 MHz	125 °C	-40 °C	82 µH	100 kHz	0.197 in	5 mm	0.197 "	5 mm	390 mA
Bourns Inc. SRR4528A-1R8Y	4.2 A	30 %	Ferrite	Shielded	Surface Mount	AEC-Q200		78 MHz	125 °C	-40 °C	1.8 µH	100 kHz	0.197 in	5 mm	0.197 "	5 mm	2.5 A	20 mOhm
Bourns Inc. SRR4528A-680M	700 mA	20 %	Ferrite	Shielded	Surface Mount	AEC-Q200	452 mOhm	12 MHz	125 °C	-40 °C	68 µH	100 kHz	0.197 in	5 mm	0.197 "	5 mm	410 mA
Bourns Inc. SRR4528A-1R2Y	4.82 A	30 %	Ferrite	Shielded	Surface Mount	AEC-Q200		82 MHz	125 °C	-40 °C	1.2 µH	100 kHz	0.197 in	5 mm	0.197 "	5 mm	3.04 A	17 mOhm
Bourns Inc. SRR4528A-6R8Y	2.25 A	30 %	Ferrite	Shielded	Surface Mount	AEC-Q200	58 mOhm	45 MHz	125 °C	-40 °C	6.8 µH	100 kHz	0.197 in	5 mm	0.197 "	5 mm	1.37 A
Bourns Inc. SRR4528A-121M	0.53 A	20 %	Ferrite	Shielded	Surface Mount	AEC-Q200	700 mOhm	9 MHz	125 °C	-40 °C		100 kHz	0.197 in	5 mm	0.197 "	5 mm
Bourns Inc. SRR4528A-180M	1.28 A	20 %	Ferrite	Shielded	Surface Mount	AEC-Q200		23 MHz	125 °C	-40 °C	18 µH	100 kHz	0.197 in	5 mm	0.197 "	5 mm	850 mA	136 mOhm
Bourns Inc. SRR4528A-560M	0.81 A	20 %	Ferrite	Shielded	Surface Mount	AEC-Q200	348 mOhm	14 MHz	125 °C	-40 °C	56 µH	100 kHz	0.197 in	5 mm	0.197 "	5 mm	450 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.86
		10	$ 0.74
		25	$ 0.68
		50	$ 0.62
		100	$ 0.55
		250	$ 0.52
	Digi-Reel®	1	$ 0.86
		10	$ 0.74
		25	$ 0.68
		50	$ 0.62
		100	$ 0.55
		250	$ 0.52
	Tape & Reel (TR)	500	$ 0.42
		1000	$ 0.39
		1500	$ 0.37
		2500	$ 0.35
		3500	$ 0.34
		5000	$ 0.32
		12500	$ 0.30
Newark	Each (Supplied on Full Reel)	1	$ 0.43
		5000	$ 0.42
		10000	$ 0.39
		20000	$ 0.36
		30000	$ 0.34
		50000	$ 0.32

Description

General part information

SRR4528A Series

1.8 µH Shielded Inductor 4.2 A 20mOhm Max Nonstandard, Corner Terminals

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
