272159-10
ActiveAmphenol RF

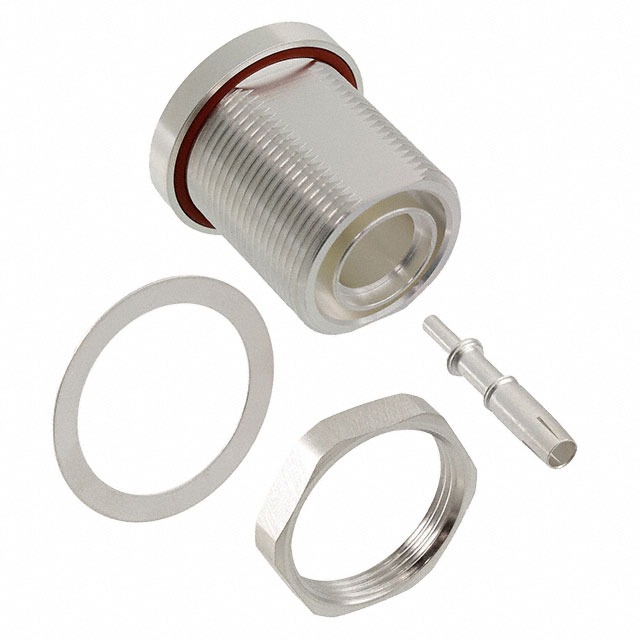

7-16 STRAIGHT SOLDER JACK RG-401 0.250-INCH CONFORMABLE TIMES TFLEX 401 BULKHEAD 50 OHM
Deep-Dive with AI
Search across all available documentation for this part.
272159-10
ActiveAmphenol RF
7-16 STRAIGHT SOLDER JACK RG-401 0.250-INCH CONFORMABLE TIMES TFLEX 401 BULKHEAD 50 OHM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 272159-10 |
|---|---|
| Body Finish | Silver |
| Body Material | Brass |
| Cable Group | 0.25 in |
| Cable Group | RG-401 |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Silver |
| Connector Style | 7/16 DIN |
| Connector Type | Female Socket, Jack |
| Contact Termination | Push On |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 7.5 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Includes | 1 pcs, 1 pcs, 1 pcs, 1 pcs |
| Ingress Protection | Weatherproof |
| Mating Cycles | 500 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Number of Ports | 1 |
| Shield Termination | Solder |
272159 Series
| Part | Center Contact Material | Housing Color | Center Contact Plating | Impedance | Mounting Type | Insertion Loss | Mating Cycles | Includes | Cable Group | Frequency - Max [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Shield Termination | Number of Ports | Body Finish | Contact Termination | Connector Type | Body Material | Connector Style | Dielectric Material | Ingress Protection | Adapter Type | Conversion Type | Convert To (Adapter End) | Convert From (Adapter End) | Adapter Series | Cable Group | Includes | Mounting Feature | Features | Style | Center Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol RF | Brass | Silver | Silver | 50 Ohms | Free Hanging (In-Line) Right Angle | 0.1 dB | 500 | 1 Connector 1 Ferrule | Belden 9913 Belden 9914 LMR-400 | 3 GHz | 155 °C | -55 °C | Crimp | 1 | White Bronze | Solder | Male Pin Plug | Brass | 7/16 DIN | Polytetrafluoroethylene (PTFE) | Weatherproof | |||||||||||
Amphenol RF | Beryllium Copper | Gold | 50 Ohms | Free Hanging (In-Line) Right Angle | 7.5 GHz | 165 °C | -65 ░C | White Bronze | Brass | Polytetrafluoroethylene (PTFE) | Plug to Jack | Same Series | 7/16 Jack Female Socket | 7/16 Plug Male Pin | 7/16 DIN to 7/16 DIN | |||||||||||||||||
Amphenol RF | Beryllium Copper | Silver | Silver | 50 Ohms | 500 | RG-401 | 7.5 GHz | Solder | 1 | Silver | Push On | Female Socket Jack | Brass | 7/16 DIN | Polytetrafluoroethylene (PTFE) | Weatherproof | 0.25 in | 1 pcs 1 pcs 1 pcs 1 pcs | Bulkhead - Front Side Nut | |||||||||||||
Amphenol RF | Beryllium Copper | Silver | Silver | 50 Ohms | Free Hanging (In-Line) | 500 | RG-401 | 7.5 GHz | Solder | 1 | White Bronze | Push On | Male Pin Plug | Brass | 7/16 DIN | Polytetrafluoroethylene (PTFE) | Weatherproof | 0.25 in | ||||||||||||||
Amphenol RF | Beryllium Copper | Silver | Silver | 50 Ohms | 500 | 7.5 GHz | Solder | White Bronze | Solder Cup | Female Socket Receptacle | Brass | 7/16 DIN | Polytetrafluoroethylene (PTFE) | Flange | ||||||||||||||||||
Amphenol RF | Brass | Silver | 50 Ohms | Free Hanging (In-Line) | 500 | 6000 MHz | 155 °C | -55 °C | White Bronze | Brass | Polytetrafluoroethylene (PTFE) | IP67 - Dust Tight Waterproof | Plug to Plug | Same Series | 7/16 Plug Male Pin | 7/16 Plug Male Pin | 7/16 DIN to 7/16 DIN | Low PIM | Straight | Male to Male | ||||||||||||
Amphenol RF | Brass | Silver | Silver | 50 Ohms | 500 | 7.5 GHz | 165 °C | -65 ░C | Solder | 1 | White Bronze | Solder Cup | Male Pin Plug | Brass | 7/16 DIN | Polytetrafluoroethylene (PTFE) | Flange | |||||||||||||||
Amphenol RF | Beryllium Copper | Silver | Gold | 50 Ohms | 500 | 7.5 GHz | Solder | 1 | White Bronze | Solder | Female Socket Receptacle | Brass | 7/16 DIN | Polytetrafluoroethylene (PTFE) | Weatherproof | Flange | Extended Insulation | |||||||||||||||
Amphenol RF | Brass | Silver | Gold | 50 Ohms | Free Hanging (In-Line) | 500 | 1 Connector 1 Contact 1 Ferrule | 213 214 225 393 87A 8A 9 RG-8 | 3 GHz | 155 °C | -55 °C | Crimp | 1 | White Bronze | Solder | Male Pin Plug | Brass | 7/16 DIN | Polytetrafluoroethylene (PTFE) | Weatherproof |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
272159 Series
7/16 DIN Connector Jack, Female Socket 50 Ohms Panel Mount Push On
